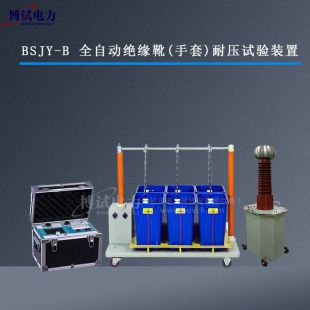

BSJY-B Full-Automatic Insulated Boots (Gloves) Withstand Voltage Test Device

【Product Introduction】

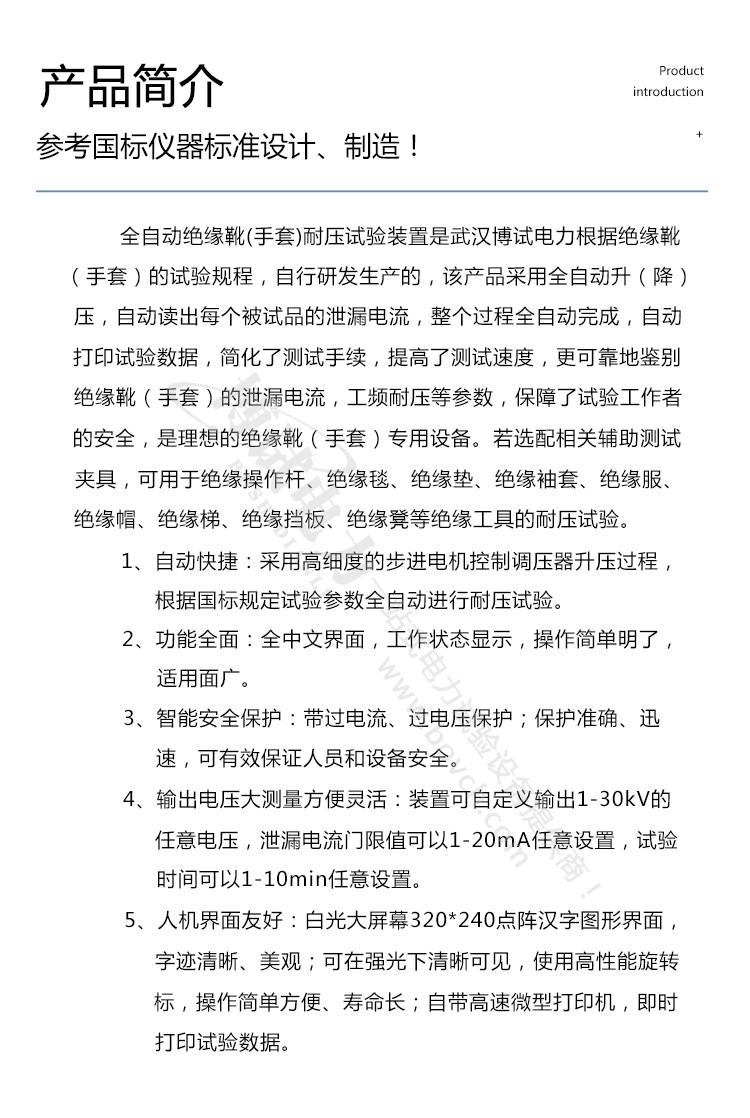

The full-automatic insulated boots (gloves) withstand voltage test device is independently developed and produced by Wuhan Boshi Electric according to the test regulations for insulated boots (gloves). This product adopts fully automatic voltage rise (fall), automatically reads the leakage current of each test object, and the entire process is fully automatic, automatically printing test data, simplifying test procedures, improving test speed, and more reliably identifying the leakage current, power frequency withstand voltage and other parameters of insulated boots (gloves), ensuring the safety of test workers. It is an ideal special equipment for insulated boots (gloves). If equipped with relevant auxiliary test fixtures, it can be used for withstand voltage tests of insulating operating rods, insulating blankets, insulating pads, insulating sleeves, insulating clothing, insulating helmets, insulating ladders, insulating barriers, insulating stools and other insulating tools.

【Product Features】

1. Automatic and fast: A high-precision stepper motor controls the voltage regulator boosting process, and the withstand voltage test is automatically carried out according to the test parameters specified in the national standard. After the test starts, the instrument automatically closes the switch and boosts at the speed required by the national standard, starts timing when reaching the preset voltage, maintains the test voltage, automatically reduces voltage when the timing reaches the preset time, automatically cuts off power after reaching zero, prompts the end of the test, and simultaneously displays the leakage current of each test object and the test results.

2. Comprehensive functions: Full Chinese interface, working status display, simple and clear operation, wide applicability; with status display and reminder function, users can see the status of the equipment at a glance; rotary mouse operation, all functions can be set through one rotary mouse, fully digital adjustment, abandoning the outdated potentiometer adjustment method, extremely convenient for on-site use; buttons directly set target voltage, leakage current, withstand voltage time, easy to use.

3. Intelligent safety protection: With overcurrent and overvoltage protection; accurate and rapid protection, effectively ensuring the safety of personnel and equipment.

4. Large output voltage and flexible measurement: The device can customize any output voltage from 1-30kV, the leakage current threshold can be set arbitrarily from 1-20mA, the test time can be set arbitrarily from 1-10min, and the parameters of common insulating equipment are integrated into modules according to national standards, making tests convenient and fast.

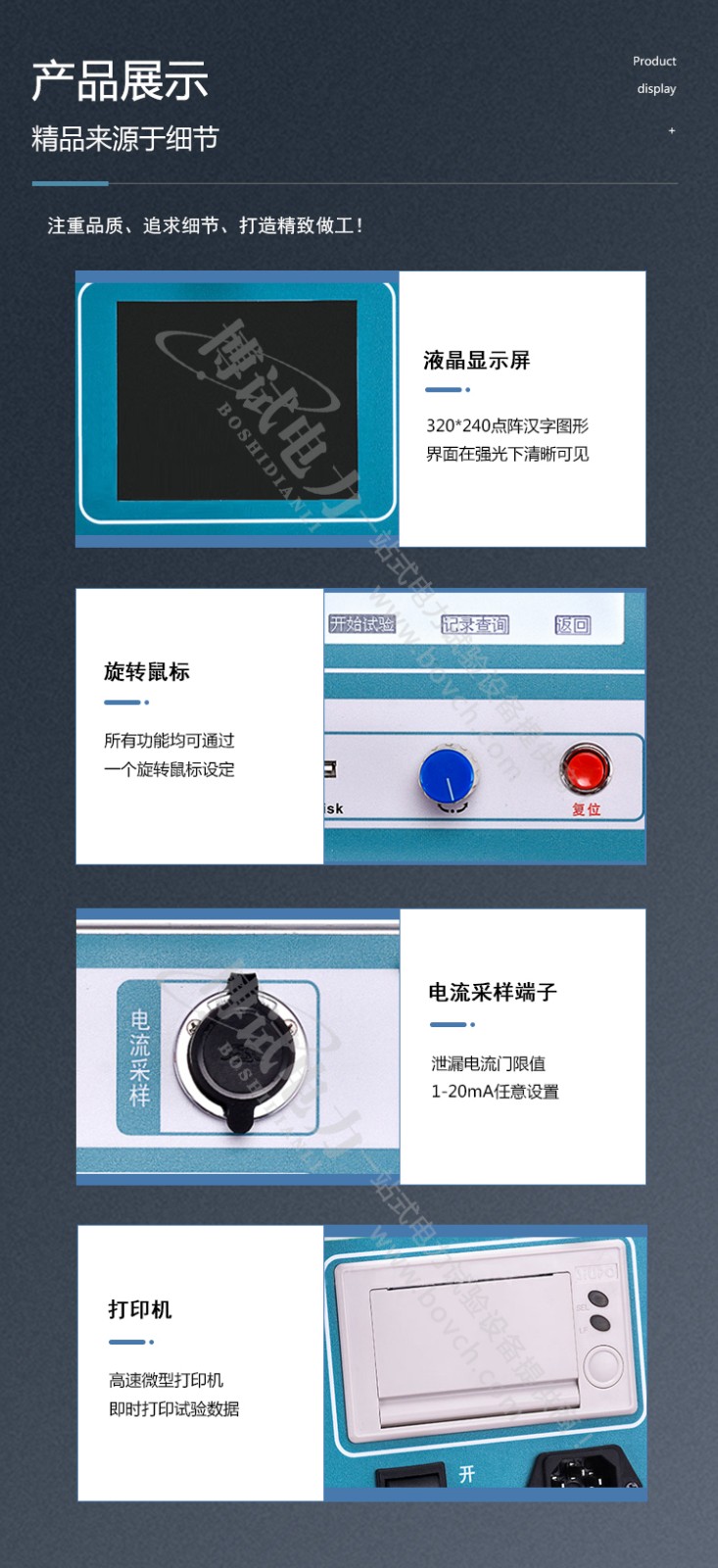

5. Friendly human-machine interface: White backlight large screen 320*240 dot matrix Chinese character graphic interface, clear and beautiful handwriting; clearly visible under strong light, using high-performance rotary mouse, simple and convenient operation, long service life; built-in high-speed micro printer, printing test data in real time.
