Product Details

1. Product Introduction

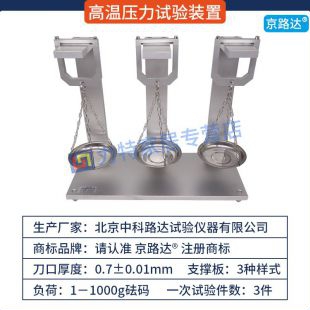

The high-temperature pressure test device is an instrument used to measure the resistance to thermal pressure deformation of common types of insulation and sheath materials for cables, optical cables, wires, and flexible wires under the simultaneous action of heat and mechanical load. Its performance and structure comply with the standard requirements of GB/T2951.31-2008 "Common test methods for insulating and sheathing materials of electric and optical cables - Part 31: Specific test methods for PVC compounds - High temperature pressure test - Anti-cracking test".

2. Main Technical Parameters
1. Blade thickness: 0.7±0.01mm
2. Load: 1-1000g weights
3. Number of test specimens per test: 3 pieces

4. Support plates: 3 types
