Product Details

Features

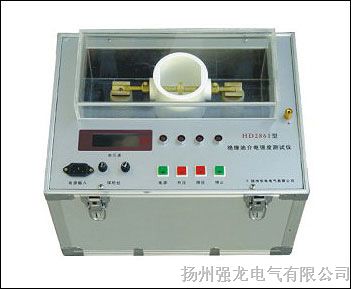

    This tester is a new product developed in accordance with the requirements of the International Electrotechnical Commission standard IEC156 and the national standard GB507-86 "Determination of Dielectric Strength of Insulating Oils". It adopts digital display and locking technology, with intuitive readings, accurate measurement, small size, and light weight. It features automatic voltage boosting and return to zero. When the oil breaks down, the overcurrent protection device can automatically cut off the power supply within 0.02 seconds, ensuring safety and reliability.

    Technical Parameters

   1、Input Voltage: AC220V±10%  50Hz±5%   Voltage Distortion Rate ≤5%

    2、Output Voltage: 0—60KV  or 0—80KV

    3、Voltage Boosting Rate: 3KV/S±10%

    4、Measurement Accuracy: Class 1.5

    5、Ambient Temperature: -10℃—40℃

    7、Ambient Humidity: 85%RH

    8、Dimensions: 400×300×300 (mm)

   9、Weight: 25kg
