The automatic insulating oil dielectric strength tester is developed according to the national standard GB-86 "Test Method for Dielectric Strength of Insulating Oil". The instrument's LCD display can show the test process and results, and the built-in EEPROM memory can store more than 100 sets of test data and results. All human-machine interaction operations are completed by the rotary mouse, and the micro printer can print test results. This tester is simple to operate, highly reliable, stable, and has strong anti-interference capability, with no crashes during the test.
Guozhi Electric professionally produces and supplies the automatic insulating oil dielectric strength tester_three cups series products. The company has a good market reputation and a professional technical team, with years of experience in developing the automatic insulating oil dielectric strength tester_three cups series. All equipment is provided with a three-guarantee service, and can issue the Wuhan High Voltage Research Institute test and verification report for the automatic insulating oil dielectric strength tester_three cups series as required.

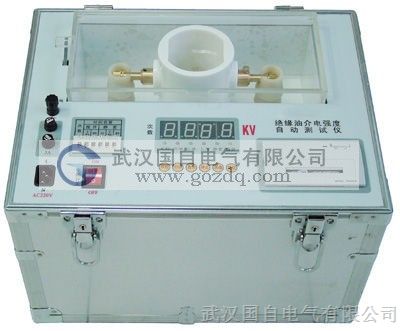

Automatic insulating oil dielectric strength tester_three cups diagram
Automatic
Automatic insulating oil dielectric strength tester_three cups features
1. The LCD display of the three-cup automatic insulating oil dielectric strength tester produced by our company can show the test process and results
2. The built-in EEPROM memory can store more than 100 sets of test data and results
3. All human-machine interaction operations are completed by the rotary mouse, and the micro printer can print test results
4. This tester is simple to operate, highly reliable, stable, and has strong anti-interference capability, with no crashes during the test
Automatic insulating oil dielectric strength tester_three cups parameters
1. Input voltage: AC 220V
2. Output voltage: AC 0~80KV
3. Voltage rise rate: 2KV/s±10%
4. Accuracy class: Class 3
5. Continuous test times: 1-9 times
6. Stirring time: 0~99 seconds
7. Rest time: 0-9 minutes 59 seconds
8. Can store 100 sets of data
9. Voltage limit setting: 20KV----70KV
10. Withstand voltage time: 1 minute-----10 minutes
11. Ambient temperature: 5-40℃
12. Relative humidity ≤80%RH
13. Dimensions: 420×380×410mm3
14. Weight: 28kg
