It combines the advantages of similar products at home and abroad, adopts numerical control technology, and has strong anti-interference ability. Compared with the previous generation of current generators, due to the use of low-power, large-capacity auto-coupling voltage regulators and high-permeability iron core transformers, it has the advantages of large output power, small size, and light weight.

Scope of application:

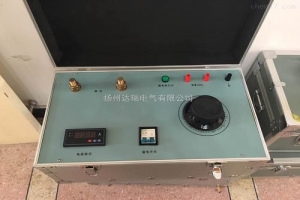

SLQ-150A High Current Generator

Mainly used for calibration of thermal relays, motor protectors, contactors, circuit breakers, air switches, switch cabinets, circuit breakers, and protection panels.

Main functions:

Can output 0～1000A current for a long time

Can synchronously test the operating time of equipment

Automatic identification of normally open and normally closed contacts

Can connect multiple calibrators in series to improve work efficiency

Performance features:

Adopts beautiful and generous PVC panel

Directly displays primary current, convenient for test observation and recording.

High measurement accuracy         0.2 level

Large power, small size, strong load capacity

Small size, light weight, only 30% to 70% of similar products, very convenient to carry.

Operation aspects:

(1) After wiring, check once to see if there are any wiring errors and whether the connectors are in good contact.

(2) During the test, if there is arcing, or no display at startup and other abnormal phenomena, immediately turn off the power and recheck the wiring.

(3) In actual wiring, the current output terminal should form a loop, otherwise the instrument will not output current.

(4) This current generator comes with random output wires; the external copper wire should be selected according to 10A/mm2. (Standard configuration is two 1-meter test leads)

(5) The capacity of this equipment is designed for short-time work of 5 minutes. If used for batch testing, the working time should be less than 2.5 minutes, and wait 10 minutes before the next operation. If doing temperature rise (30 minutes to 24 hours), it should be configured according to long-term working temperature rise.
