Product Description

Insulation Boots and Gloves Test Device Price

Dari Electric recommends for you

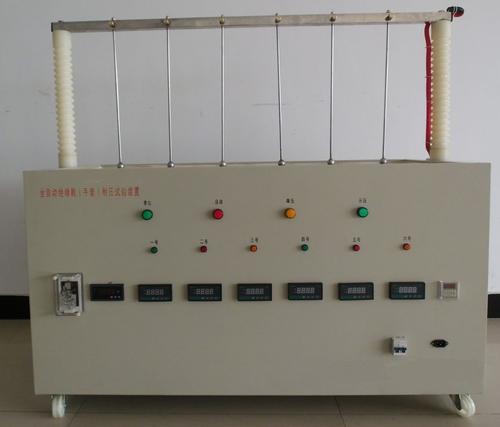

YTM-III Insulation Boots (Gloves) Test Device

Insulation Glove Withstand Voltage Tester / Insulation Boot Withstand Voltage Tester

Product Aliases

Insulation Boots and Gloves Withstand Voltage Test Device, Protective Tools Insulation Test Bench, Insulation Boots and Gloves Withstand Voltage Tester, Auxiliary Insulation Tools Test Device, Insulation Boots and Gloves Test Device, Live Line Protective Equipment Insulation Test Device, Insulation Boots and Gloves Testing Machine.

Product Introduction

The Insulation Boots (Gloves) Withstand Voltage Tester is independently developed and produced based on the test regulations for insulation boots (gloves) and in accordance with the opinions of the majority of users. This product adopts fully automatic voltage rise (fall), automatically reads the leakage current of each test object, and the entire process is fully automatic, automatically printing test data, effectively solving the previous irregular testing methods, thereby simplifying test procedures and improving test speed. It can more reliably identify parameters such as leakage current and power frequency withstand voltage of insulation boots (gloves). It ensures the safety of test workers and is an ideal dedicated device for insulation boots (gloves). Its main features: can test 3 pairs of insulation boots (gloves) simultaneously, and can read the leakage current of each one, accurately determining unqualified insulation boots (gloves); the bottom of the structure is equipped with casters for easy movement. If equipped with relevant auxiliary test fixtures, it can be used for withstand voltage tests of insulating operating rods, insulating blankets, insulating pads, insulating sleeves, insulating clothing, insulating helmets, insulating ladders, insulating barriers, insulating stools, and other insulating tools.

Insulation Boots (Gloves) Test Device Product Features

◆ With overcurrent and overvoltage protection. Accurate and rapid protection, effectively ensuring the safety of personnel and equipment;

◆ Combines hardware and software anti-interference technologies, stable performance, strong anti-interference;

◆ Precise voltage control capability, small voltage control error;

◆ Time setting range: 1 second to 9999 seconds;

◆ Uses a high-precision stepper motor to control the voltage regulator boosting process, fully automatic withstand voltage test. After the test starts, the instrument automatically closes the switch, boosts at the speed required by national standards, starts timing when reaching the preset voltage, maintains the test voltage, and after the time is up, automatically reduces voltage, automatically cuts off power after reaching zero, prompts the end of the test, simultaneously displays the leakage current of each test object, and displays the test results;

◆ Small size, light weight, reasonable structure, reliable and durable, fast test speed, improving work efficiency;

◆ High voltage and high voltage leakage current direct reading, can automatically identify unqualified test objects, high intelligence;

◆ Can test 3 pairs of insulation boots (gloves) simultaneously, and can read the leakage current of each one, accurately determining unqualified insulation boots (gloves);

Insulation Boots (Gloves) Test Device Technical Parameters

◆ Supply Voltage

◇Voltage: AC 220V, allowable deviation: -20%~+15%;

◇Frequency: 50Hz, allowable deviation -4%~2%;

◆ Output Voltage: 0-50kV

◆ Capacity: 5kVA

◆ Test Quantity: 6 pieces each time, customizable to 8, 10, 12 pieces

◆ Measurement Data: Can display and print the voltage value and leakage current value of each test object

◆ Overcurrent Protection: Overvoltage protection; custom time, voltage, leakage current values

◆ Display Mode: Dot matrix LCD display, full Chinese menu operation, with printing

◆ Measurement Accuracy

◇Voltage ±1.0% (±3 digits)

◇Current ±1.5% (±3 digits)

Note: The above information and technical parameters are compiled and released by Yangzhou Dari Electric Co., Ltd.
