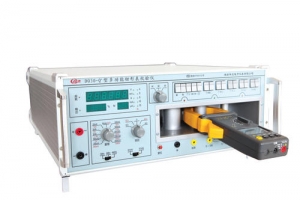

Multifunctional Calibration Vehicle Dari Electric recommends for you |
Main Features
*The output power types are particularly complete, with high power, and can be adjusted and controlled separately, and have output remote control switch and voltage short-circuit protection
*All control and adjustment are low-voltage, with clear and distinct functions
*Extremely strong anti-interference capability, it is an indispensable support for relay protection systems or devices with excitation quantities for various anti-interference tests
*Display and operation are intuitive and convenient, each output has instrument indication
*Input power has phase sequence indication, and can convert phase sequence
*Elegant appearance, easy to move
Main Functions
*Can provide three-phase 0-50A current output and 0-15A DC current output
*Can provide three-phase 0-380V voltage output, 380V/5A conversion output
*Three-phase 100V or three-phase 380V voltage output, and can shift phase relative to three-phase current output by +90o, -90o or 0o,
especially suitable for testing forward and reverse rotation of watt-hour meters to confirm wiring correctness, and can also change its phase sequence
*Can provide 0-250V/2A DC voltage output
*Can also simulate single-phase trip and close process
Application Scope
Suitable for functional tests of various relay protection panels, control panels, watt-hour meter panels, and high and low voltage switchgear in power systems, also particularly
suitable for production units as a multifunctional test and debugging power supply.
Note: The above information and technical parameters are compiled and released by Yangzhou Dari Electric Co., Ltd.
