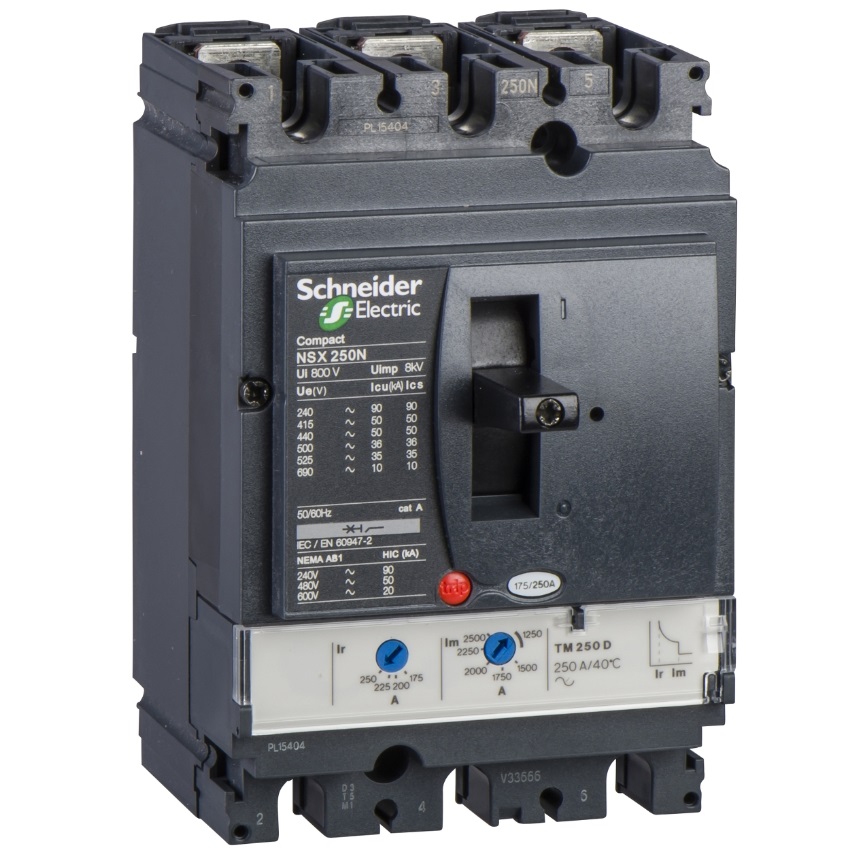

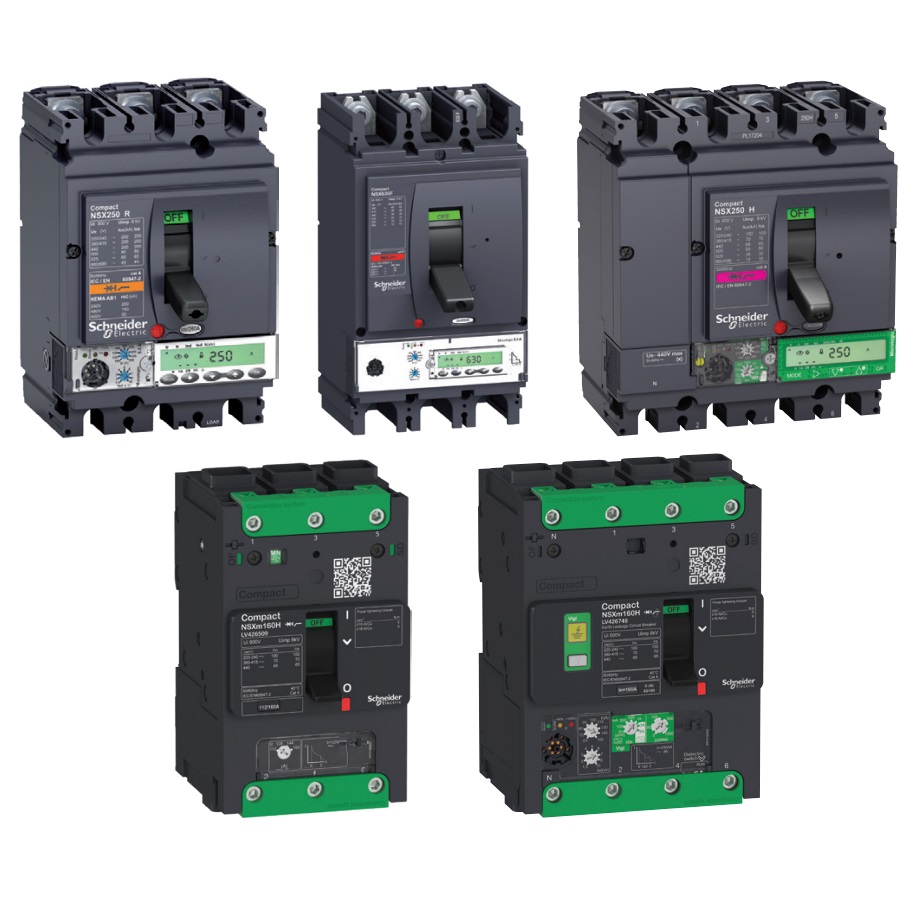

Schneider Fixed Compact Circuit Breaker NSX250N TM200D 3P3D 3P3R LV431831

Product name: ComPact NSX ; ComPact NSX100...250

Product short name: NSX250N

Product type: Circuit breaker

Product application: Distribution protection

Number of poles: 3P

Protected poles description: 3t

Rated current [In]:  200 A  at 40 °C

Rated operational voltage [Ue]: 690 V AC 50/60 Hz

Network type: AC

Network frequency: 50/60 Hz

Isolation function: Yes, conforming to EN/IEC 60947-2

Utilization category: AC

[Icu] rated ultimate short-circuit breaking capacity:

     85 kA at 240 V AC 50/60 Hz conforming to UL 508

     10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

     35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2

     50 kA at 480 V AC 50/60 Hz conforming to UL 508

     36 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

     50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2

     50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2

     90 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

     15 kA at 600 V AC 50/60 Hz conforming to UL 508

Performance level: N 50 kA 415 V AC

Trip unit name: TM-D

Trip unit type: Thermal-magnetic

Trip unit protection functions: LI

Control type: Toggle

Circuit breaker mounting mode: Fixed

Complementary information

Rated insulation voltage [Ui]: 800 V AC 50/60 Hz

Rated impulse withstand voltage [Uimp]: 8 kV

[Ics] rated service short-circuit breaking capacity:

     10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

     35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2

     36 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

     50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2

     50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2

     90 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability: 20000 cycles

Electrical durability: 5000 cycles at 690 V In

      10000 cycles at 690 V In/2

      10000 cycles at 440 V In

      20000 cycles at 440 V In/2

Mounting mode: Backplate mounting

Connection mode: Front connection

Pole pitch: 35 mm

Protection type: Overload protection (thermal protection) ; Short-circuit protection (magnetic protection)

Trip unit rating: 200 A at 40 °C

Long-time pick-up adjustment type Ir (thermal protection): Adjustable

[Ir] long-time protection pick-up adjustment range: 0.7...1 x In

Long-time protection delay adjustment type tr: Fixed

[Tr] long-time protection delay adjustment range: 120…400 s at 1.5 x In ; 15 s at 6 x Ir

Short-time protection pick-up adjustment type Isd: Adjustable

[Isd] Short-time protection pickup adjustment range: 5...10 x In

Short-time protection delay adjustment type tsd: Fixed

Earth leakage protection: No earth leakage protection

Number of slots for electrical auxiliaries: 5 slots

Width (W) 105 mm

Height (H) 161 mm

Depth (D) 86 mm

Net weight: 2.4 kg

Environment

Standards: EN/IEC 60947

Product certifications: CCC ; EAC ; Marine

Overvoltage category: Class II

Electric shock protection class: Class II

Pollution degree: 3 conforming to IEC 60664-1

IP protection level: IP40 conforming to IEC 60529

IK protection level: IK07 conforming to IEC 62262

Operating temperature: -25…+70 °C

Storage ambient temperature: -50… +85 °C

Relative humidity: 0…95 %

Operating altitude: 0...2000 m without derating ; 2000 m...5000 m with derating

Packaging unit:

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 11.29 cm

Package 1 Width 13.887 cm

Package 1 Length 19.135 cm

Package 1 Weight 2.014 kg

Unit Type of Package 2 S03

Number of Units in Package 2 4

Package 2 Height 30.0 cm

Package 2 Width 30.0 cm
