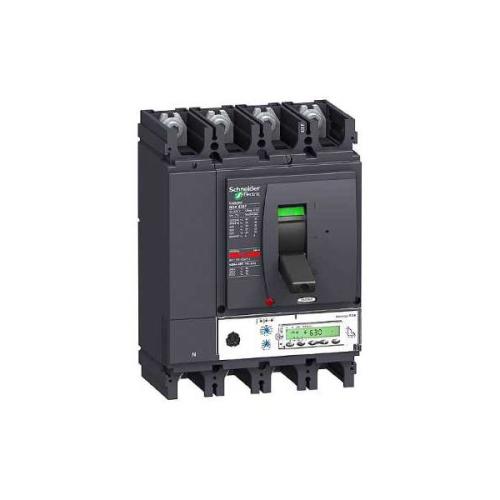

Product Introduction
Schneider molded case circuit breakers are suitable for AC 50/60Hz, rated working voltage 690V (1), rated current 15 to 630A in distribution networks for distributing electrical energy and protecting lines, power supplies and electrical equipment from overload and short circuit, improving the reliability and continuity of power supply.

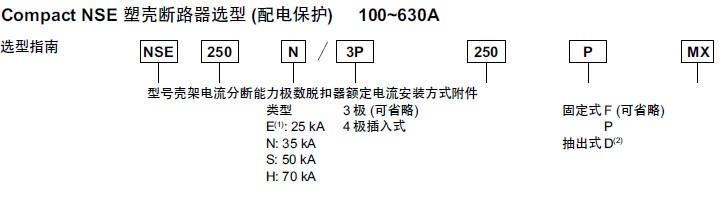

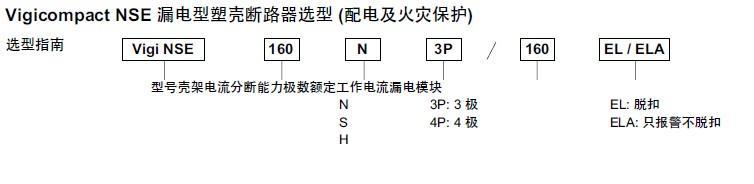

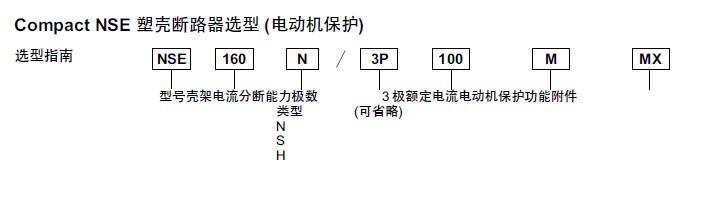

Schneider Molded Case Circuit Breaker Selection Guide

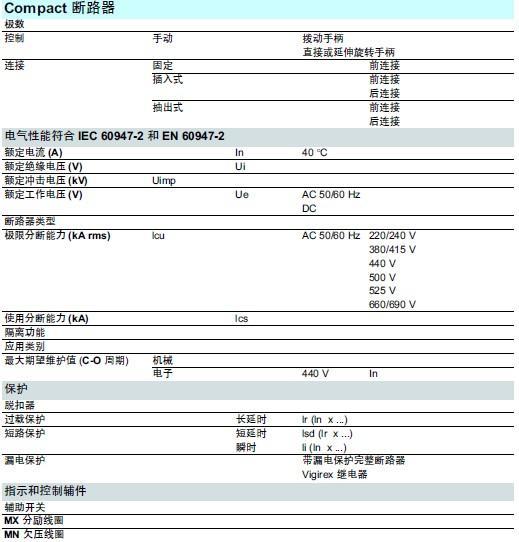

Technical Parameters of Schneider Molded Case Circuit Breakers
Classification of Schneider Molded Case Circuit Breakers
1. By installation method: vertical installation, horizontal installation.
2. By purpose of circuit breaker: distribution protection type, motor protection type.
3. By wiring method: front panel wiring, rear panel wiring, plug-in wiring.
4. By operation method: direct handle operation, external rotary handle operation, electric operation.
5. By trip unit type: instantaneous trip only (magnetic trip), thermal-magnetic trip (compound), electronic trip.
6. By number of poles: two-pole, three-pole, four-pole; in four-pole circuit breakers, there are four types of neutral pole (N pole):
Type A: N pole without overcurrent trip, and N pole is always closed, not switching with the other three poles.
Type B: N pole without overcurrent trip, and N pole switches with the other three poles.
Type C: N pole with overcurrent trip, and N pole switches with the other three poles.
Type D: N pole with overcurrent trip, and N pole is always closed, not switching with the other three poles.
