Technical Parameters
6000A(3P) Air Circuit Breaker Fixed Type Drawer Type Air Circuit Breaker
The 6000A(3P) air circuit breaker (hereinafter referred to as the circuit breaker) is suitable for power distribution networks with a frequency of 50Hz, rated working voltage of 400V and 690V, and rated current from 630A to 6300A. It is used to distribute electrical energy and protect lines and power equipment from faults such as overload, undervoltage short circuit, and single-phase grounding. This circuit breaker has intelligent protection functions, precise selective protection, improves power supply reliability, and avoids unnecessary power outages. It features a compact structure, small size, and high breaking capacity. The enclosed contact system achieves zero arc flash. The intelligent controller has functions such as testing, load monitoring, large information display, on-site programming, and communication, enabling complete three-stage or four-stage protection.

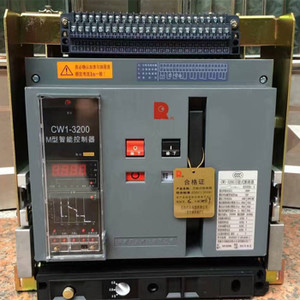

Technical Parameters CDW1-3200/3P/4P/3200A Fixed Type Drawer Type Air Circuit Breaker
Compliance Standards:
This product complies with GB/T14048.1-2006 "General Rules for Low-Voltage Switchgear and Controlgear" and GB14048.2-2008 "Low-Voltage Switchgear and Controlgear - Low-Voltage Circuit Breakers", and also meets the requirements of IEC60947-2 "Low-Voltage Switchgear and Controlgear - Part 2: Circuit Breakers".
Normal Working and Installation Conditions:
* Ambient air temperature: -5℃ to +40℃, with a 24-hour average not exceeding +35℃
* Atmospheric conditions: Relative humidity not exceeding 50% at an ambient temperature of +40℃; higher relative humidity is permissible at lower temperatures, e.g., 90% at 20℃. Special measures should be taken for occasional condensation due to temperature changes.
* Pollution degree: Class 3
* The circuit breaker should be installed vertically, with a vertical tilt angle not exceeding 5°
* Wiring methods: horizontal wiring, vertical wiring
