Technical Parameters and Component Function Description

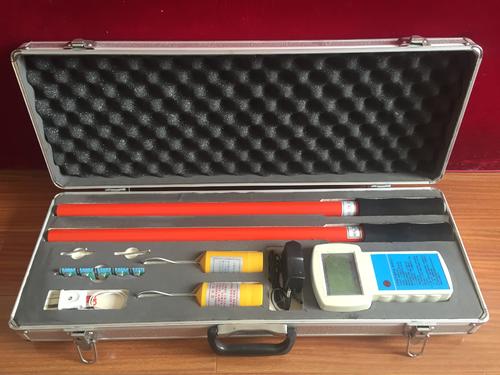

1. Technical Parameters
Application Range: 6～35kV, 110KV, 220KV, 500KV and other voltage levels
Test Object: Live parts of lines or equipment
Height Above Ground: Less than 15 meters
Maximum Distance Between Transmitters: Less than 30 meters
Equipment Operating Frequency: 1.2GHz
2. Transmitters
Transmitter N0.1 and Transmitter N0.2 Dimensions: Φ60×120mm Power Supply: 8.4V (NiMH rechargeable battery)
3. Receiver Dimensions: 235×130×43mm
Power Supply Battery: 12V NiMH rechargeable battery
Functions of Receiver Components
4. Insulating Rods: 2 rods, 4 sections in total, use two sections combined when in use
Application Range: 6～35kV, 110KV, 220KV, 500KV and other voltage levels
The insulating rods are made of epoxy resin, each rod is 2 meters long (each rod consists of two sections). The insulating rods are specified to be produced by professional manufacturers, and the length and test voltage comply with IEC60855 and the national standard GB113398-92 "General Technical Conditions for Insulating Rods for Live Working".
Reference Table for Power Frequency Withstand Voltage Test of Insulating Rods
Voltage Level Effective Insulating Length 1-Minute Power Frequency Withstand Voltage
10kV and below 700mm 45kV
35kV 900mm 95kV
110kV 1300mm 220kV
220kV 2100mm 440kV
The insulating rods should be regularly subjected to power frequency withstand voltage tests and visual inspections for scratches, cracks, or other abnormalities. They should be stored in a dry and ventilated place.
Note: The above information and technical parameters are compiled and released by Yangzhou Dare Electric Co., Ltd.
