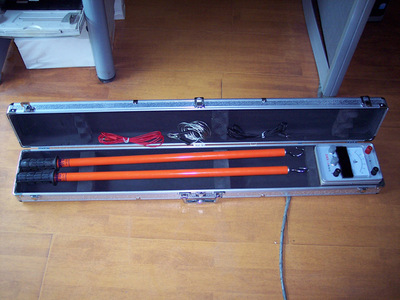

FRD-10KV High Voltage Digital Display Voice Phase Verifier is a routine task in power systems to check phase alignment. Traditional phase determination methods mostly use voltage transformers or high voltage detectors. The former is bulky, while the latter relies on weak glow indication, which can easily lead to misjudgment.
The FRD type high voltage digital display phase verifier (also known as phase comparison rod) makes this dangerous yet essential work safe and reliable, with clear digital display and additional voice prompts, solving the inconvenience of long distances and low visibility. It is another innovation of our company. Lightweight and portable, it is an indispensable tool for high voltage electricians.
FRD-10KV High Voltage Digital Display Voice Phase Verifier technical parameters:
Model: FRD-10/FRD-35 /FRD-66 /FRD-110
Voltage level: 10kV/ 35kV/ 66 Kv/ 110 Kv
Accuracy: ±1%+2 digits
Display mode: Three and a half digit LCD display with backlight, voice and light alarm, even at long distances it does not affect use.
Power supply: 9V×2
Dimensions: φ28×0.8m×2 sections, φ28×1m×3 sections, φ28×1m×4 sections, φ28×1m×5 sections
Weight: 2.5kg 3.5kg 4.3kg 5.2kg
Applicable: 6 ～10kV system/ 35kV system /66kV system/ 110kV system
