Technical Features
1. Both computer-operated and manual test methods coexist, facilitating debugging and testing of plugins for staff.
2. The test circuit fully simulates the working state of underground switches.
3. Tests must be conducted item by item as required; otherwise, test reports cannot be automatically generated, ensuring scientific management.

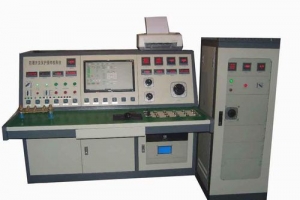

4. Cabinet 1 is a three-phase test power supply (127V, 1140V) control cabinet.
5. The middle operation cabinet is a plugin debugging cabinet.
6. Cabinet 2 is a combined cabinet including three-phase synchronous testing, vacuum characteristic tester, action characteristic testing, plugin debugging box (KM-DS type), etc.
Detection Functions
1. Testing of all starter electronic protectors such as JDB, ABD, QJZ-300, PIR-400, etc.
2. Testing of all vacuum feeder switch protection plugins such as BKD9, BKD1, BKD16, BKD20, KBZ1, DT5, etc.
3. Testing function for relay protectors used in BGP series vacuum power distribution devices, with specific manufacturer and model provided by the user.
4. Testing of electronic protection plugins used in ZBZ, ZBX series electric drills and lighting signal protection devices, applicable to all manufacturers and models.
5. Detection of three-phase closing synchronization of vacuum contactors and circuit breakers.
6. Measurement of vacuum degree (withstand voltage value) of vacuum contactor switch tubes.
1. Power supply: three-phase four-wire 380V, capacity 20KVA
2. High-voltage switch control power supply: 0～130%Ue×100V;
3. Simulated zero-sequence current: 0～10A; Zero-sequence voltage: 0～100V phase-shift adjustable
4. Simulated overcurrent: 200A~2000A; Capacity: 10KVA;
5. Simulated power supply side to ground capacitance: 0.1μf, 0.22μf;
6. Simulated load to ground capacitance: 0.1μf, 0.22μf, 0.47μf, 1.0μf;
7. Simulated leakage resistance, ground leakage lockout, loop resistance, insulation resistance: 0～99.9K;
8. Protection time timing range: 0～999.999s six digits, minimum resolution 1ms;
9. Capacitor compensation current: 0～2000mA;
10. Main circuit test power supply: 127V, 1140V×110%;、
Note: The above information and technical parameters are compiled and released by Yangzhou Dari Electric Co., Ltd.
