Strain Gauge Terminal

Published: 2024-10-28 16:50:02

Category: High-altitude Wire Clamp

Product Description

Detailed Introduction

Standard Specification:
Use: Provides a convenient junction point for connecting strain gauges and instrument wires

Strain Gauge Terminal

TMLTerminals provide a convenient junction point for connecting strain gauges and instrument wires

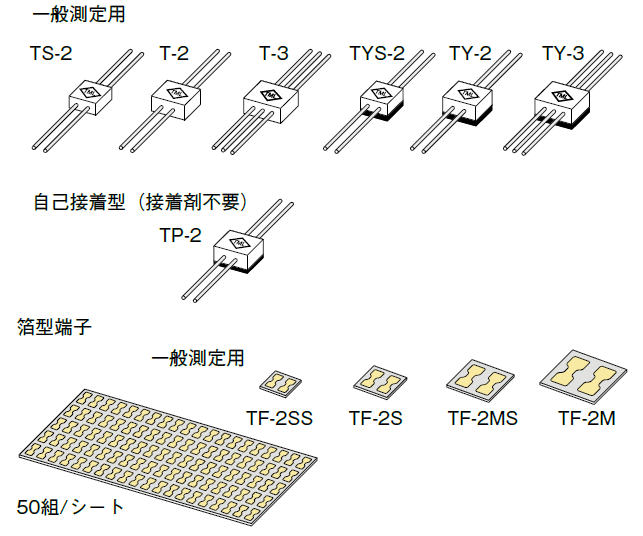

Three-Dimensional Type

Model	Dimensions (mm)	Operating Temperature (°C)	Quantity
T-2	10×10×5	-20~+90	100 pcs/box
T-3 (for 3-wire)	10×10×5	-20~+90	100 pcs/box
TS-2	7.5×7.5×5	-20~+90	100 pcs/box
TYS-2	7.5×7.5×7	-20~+90	100 pcs/box
TY-2	10×10×7	-20~+90	80 pcs/box
TY-3 (for 3-wire)	10×10×7	-20~+90	80 pcs/box
TP-2	10×10×6	-20~+60	100 pcs/box

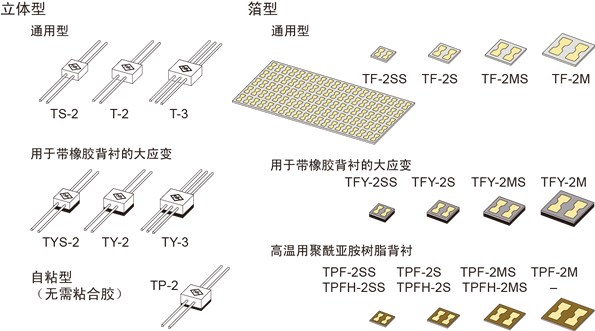

Foil Type

Model	Dimensions (mm)	Operating Temperature (°C)	Quantity
TF-2SS	4.6×3.8×0.2	-196~+180	50 sets/sheet
TF-2S	6×5.3×0.2	-196~+180	50 sets/sheet
TF-2MS	8×7.2×0.2	-196~+180	50 sets/sheet
TF-2M	10×9.2×0.2	-196~+180	50 sets/sheet
TFY-2SS	4.6×3.8×0.8	-20~+120	50 sets/sheet
TFY-2S	6×5.3×0.8	-20~+120	50 sets/sheet
TFY-2MS	8×7.2×0.8	-20~+120	50 sets/sheet
TFY-2M	10×9.2×0.8	-20~+120	50 sets/sheet
TPF-2SS	4.6×3.8×0.2	-196~+200	50 sets/sheet
TPF-2S	6×5.3×0.2	-196~+200	50 sets/sheet
TPF-2MS	8×7.2 ×0.2	-196~+200	50 sets/sheet
TPF-2M	10×9.2×0.2	-196~+200	50 sets/sheet
TPFH-2SS	4.6×3.8×0.1	-269~+350	50 sets/sheet
TPFH-2S	6×5.3×0.1	-269~+350	50 sets/sheet
TPFH-2MS	8×7.2×0.1	-269~+350	50 sets/sheet

N.B.: The TPFH series are heat-resistant terminals with a polyimide resin backing on TPF. They can be used with QF/ZF series strain gauges for repeated bonding on the terminal for high-temperature measurements.
