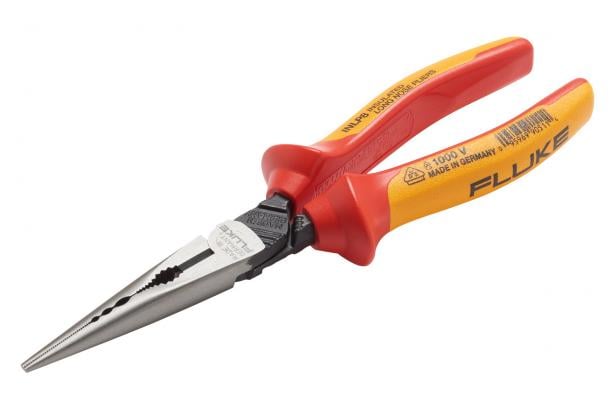

Fluke Insulated Needle Nose Pliers

Published: 2024-10-27 04:00:01

Views: 2922

Category: High-altitude Wire Clamp

Product Description

Detailed Introduction


Wires need cutting. Cables need pulling. Pins need twisting. Sometimes, just holding. With Fluke insulated pliers and cutters, you have options when the job calls for toothed jaws.

Fluke insulated needle nose pliers include side cutters and a unique milled wave (as a heavy gripping zone). There are 4 gripping points for pulling round objects, preventing slippage. Forged from German chrome-molybdenum-vanadium (CMV) steel and backed by a limited lifetime warranty.

Pliers Type Nominal Length (inches) Nominal Length (mm)
Needle Nose 8 200
Warranty Period Fluke Insulated Hand Tools Limited Lifetime Warranty

Each Fluke insulated hand tool is free from defects in material and workmanship. "Lifetime" here means seven years after Fluke discontinues manufacturing this product, but this warranty period shall be at least fifteen years from the date of purchase of the product. This warranty does not apply to damage caused by neglect, abuse, contamination, alteration, accident, or abnormal working or handling conditions, nor to damage or normal wear of mechanical components. This warranty applies only to the original purchaser and is not transferable.

Fluke Insulated Hand Tools Usage and Maintenance Recommendations

Below are guidelines for the maintenance, inspection, retesting, and use of Fluke insulated hand tools.

Warning - To prevent personal injury or electric shock, please note the following:

  • Keep fingers behind the finger guard of the tool. Do not touch conductive parts.
  • Always wear approved eye protection.
  • Do not use in wet environments. Use tools only when clean and dry.
  • Never apply excessive force to the insulation of the tool, as the insulation may be damaged. For example, using the insulated surface as a fulcrum to pry or wedge objects, or using other tools such as pliers or wrenches to grip the insulated handle to increase torque or leverage.

If the product is not used as specified, the protective function may be impaired.

Storage

Insulated hand tools should be stored properly to minimize the risk of damage to the insulation during storage or transport. These insulated hand tools should be stored separately from other tools to prevent mechanical damage or confusion with non-insulated tools. Additionally, they should be protected from contact with overheated surfaces (e.g., steam pipes) or excessive UV radiation.

Pre-use Inspection

Before use, the user should inspect each insulated hand tool visually. If there is any doubt about the safety of an insulated hand tool, it should be inspected by qualified personnel. If necessary, it must be retested to determine suitability, or disposed of to prevent future use.

Temperature

Insulated hand tools may only be used in environments with temperatures from –20 °C to +70 °C. Tools marked with "C" may only be used in environments with temperatures from –40 °C to +70 °C.

Periodic Inspection and Electrical Retesting

It is recommended that a visual inspection be performed annually by appropriately trained personnel to determine whether the insulated hand tool can continue to be used. If national regulations require electrical retesting, or if there is any doubt after visual inspection, the insulated hand tool should be subjected to the appropriate dielectric test in IEC 60900.

For details, please contact the Fluke Service Center.

INLP8

Insulated needle nose pliers (with side cutters and gripping zone)
