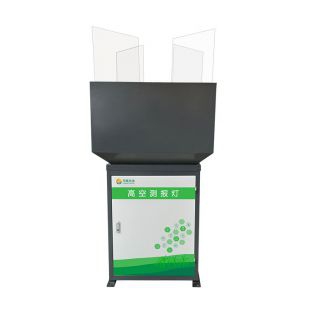

I. Equipment Introduction
The production and processing of the high-altitude pest monitoring light comply with the GB/T 24689.1-2009 standard for plant protection machinery pest situation monitoring lights. Captured insects are killed using far-infrared treatment. It is low-cost, causes minimal damage to insect bodies, and facilitates easy identification and counting of insects; discarded insect bodies do not pollute the environment and can be used as poultry feed; it avoids the harm to monitoring personnel caused by traditional monitoring tools that use highly toxic pesticides; it can add environmental temperature and humidity display, showing real-time environmental temperature and humidity data, and can add other monitoring environmental meteorological data devices as needed for pest situation monitoring, such as soil temperature, soil moisture, wind speed, wind direction, light intensity, etc.
II. Technical Parameters
1. Production and inspection standards comply with GB/T 24689.1-2009 plant protection machinery high-altitude pest monitoring light;
2. Adopts optical, electrical, numerical control, and time control technologies. Both light control and time control modes can be set;
3. Applicable power supply voltage: 220V AC;
4. Power consumption: standby state ≤4.5±5W, total lamp power ≤2000W;
5. The insect attracting device adopts a high-altitude projection lamp design scheme, with a reasonable design structure and simple usage. It is mainly aimed at attracting and intercepting high-altitude migratory pests;
6. The high-altitude pest monitoring light uses advanced technologies such as optical, electrical, numerical control, and time control to target insects based on their activity habits. It automatically starts working at night and automatically stops during the day, saving power consumption and extending equipment service life;
7. Automatically turns on at night and turns off during the day. In nighttime working state, it is not affected by instantaneous strong light exposure to change working state;
8. Uses far-infrared rapid processing of insect bodies. Discarded insect bodies do not pollute the environment and can be used as poultry feed.
9. Rain control device: automatically controls the entire lamp operation according to external rainfall changes. In rainy weather, it automatically shuts down the machine and drains rainwater, ensuring normal product use and effectively separating rain and insects;
10. Lamp starting performance: fully starts within 2 minutes, reaching specified brightness;
11. Insect attracting light source: uses 1000W metal halide sodium lamp with illumination height ≥800 meters, targeting high-altitude migratory pests for attraction and interception;
12. Far-infrared insect body processing chamber temperature control: reaches 95°C~120°C after 20 minutes of operation, with adjustable processing time;
13. Insulation resistance: ≥2.5MΩ, with leakage protection device;
14. Far-infrared insect body processing lethality rate is not less than 95%, and insect body integrity rate is not less than 98%.
