TD-1168 Multifunctional Retractable High-altitude Wire Clamp Product Features
Simple operation: It brings traditional high-altitude work to the ground. By pushing and pulling the special operating rod, the clamp mouth can freely open and close to complete wiring work.
Safe and reliable: The wire clamp has a clamping force locking and release device inside. When pulling the special rod, the internal spring energy storage device can automatically lock the clamp mouth at any required clamping force, and it will not loosen or open by itself under non-operating conditions.
High clamping force: It can easily break the oxide film at the test point. Between the movable and fixed clamp mouths, using the principle of movable pulley to save effort, a smaller pulling force can obtain a larger clamping force;
Strong overload capacity: Short-time current is greater than 200A.
Good contact: The wire clamp has the function of overcoming the oxide film while clamping, ensuring good contact between the clamp mouth and the wiring position.
Strong practicality: The clamp mouth angle of the wire clamp can be changed, and it can complete wiring work for loop resistance, DC resistance, dielectric loss, insulation withstand voltage, and other tests or maintenance grounding at different angles, thicknesses, diameters, and heights below 8.5 meters.
Light weight and easy to use. The structure design is reasonable, the quality is excellent, durable, and the clamp head weighs less than 1kg.
TD-1168 Multifunctional Retractable High-altitude Wire Clamp Technical Parameters:

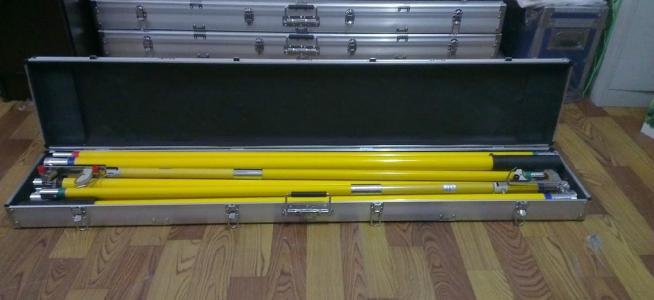

The appearance of the multifunctional high-altitude wire clamp (as shown in Figure 1).
Main technical parameters
Operating rod voltage level 500kV
Instantaneous current ≥200A
Operating rod self-weight 3.6kg/set (each set includes 5 operating rods)
Clamp head weight 0.9kg/piece
Standard configuration 2 sets/box (each set includes 5 operating rods, total length 7.5 meters)
Mainly used for substation maintenance in power systems, for high-altitude power connection tests on electrical equipment such as contact resistance, loop
resistance, relay protection CT tests, etc. Especially suitable for ground-level testing and wiring of high-altitude equipment. Any clampable position can be selected for testing, and it can adapt to wiring needs at different angles.
The advent of the multifunctional high-altitude wire clamp has transferred traditional high-altitude work to the ground, fundamentally
solving the danger of climbing, greatly improving the working conditions of field operators.
Note: The above information and technical parameters are compiled and released by Yangzhou Dari Electric Co., Ltd.
