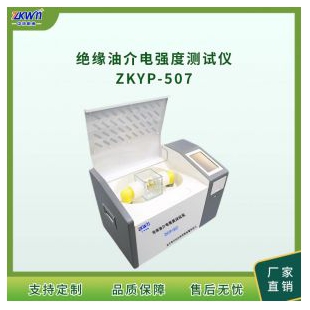

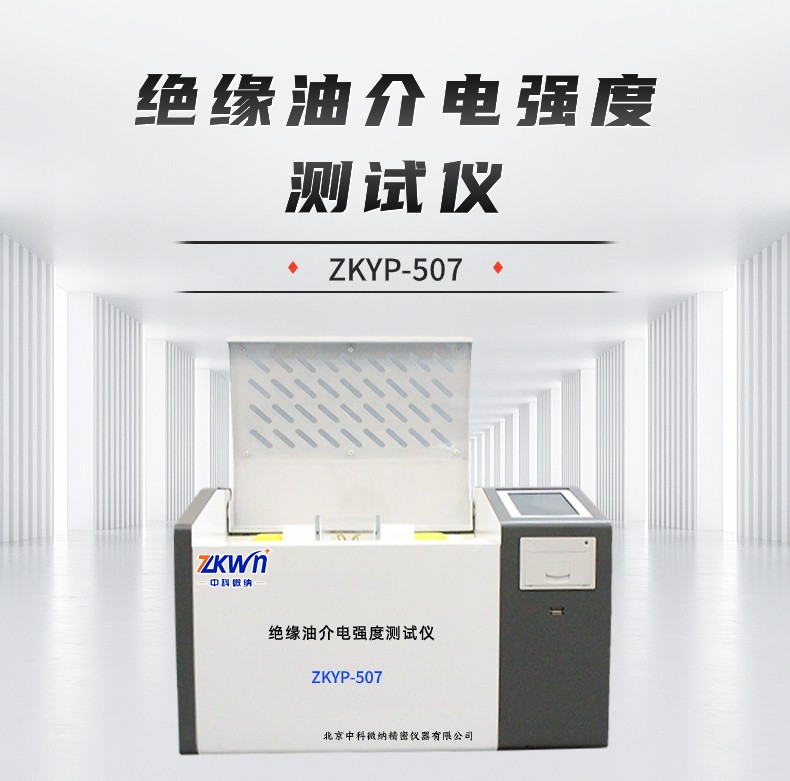

Insulating Oil Dielectric Strength Tester
ZKYP-507

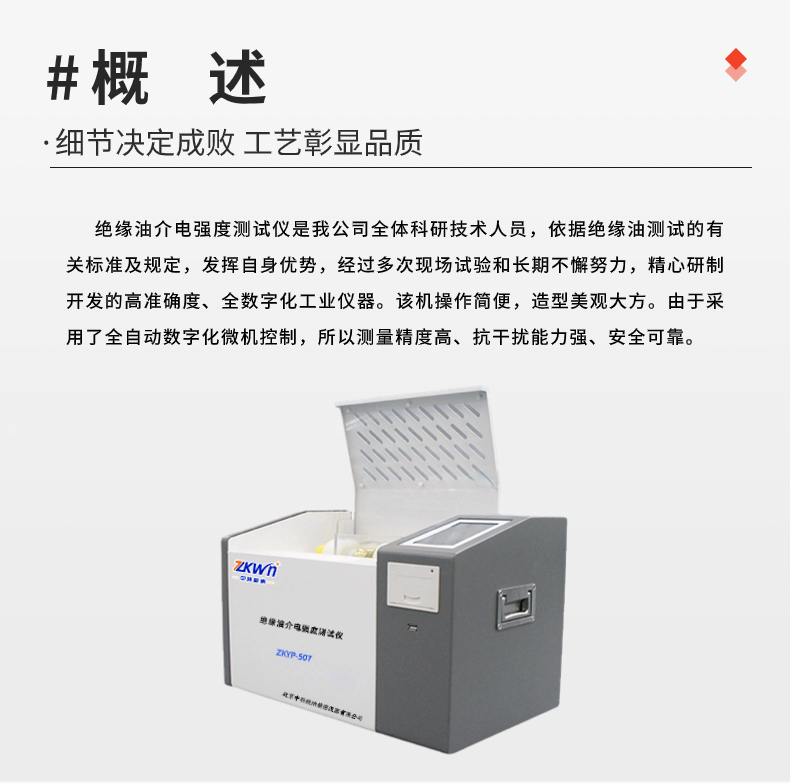

I. Overview
Based on the relevant standards and regulations for insulating oil testing, leveraging our own advantages, and through multiple field tests and long-term unremitting efforts, we have carefully developed a high-accuracy, fully digital industrial instrument. This machine is easy to operate and has a beautiful and elegant appearance. Due to the adoption of fully automatic digital microcomputer control, it offers high measurement accuracy, strong anti-interference capability, and is safe and reliable.

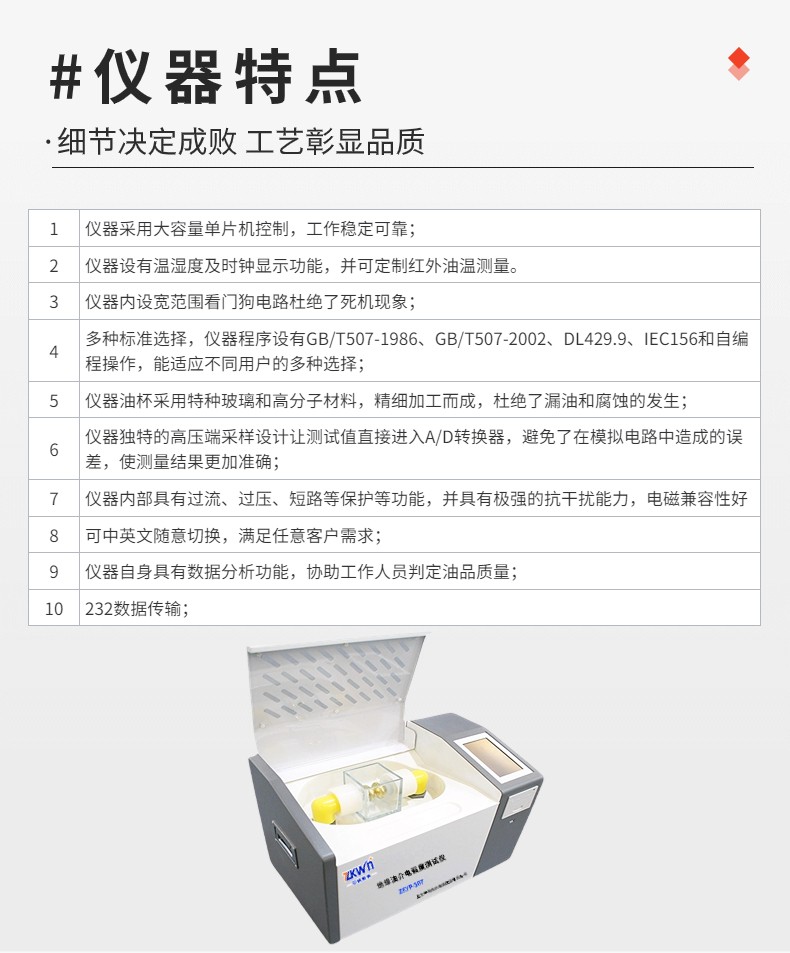

II. Instrument Features
1. The instrument uses a large-capacity single-chip microcomputer control, ensuring stable and reliable operation;
2. The instrument is equipped with temperature, humidity, and clock display functions, and can be customized with infrared oil temperature measurement.
3. The instrument has a built-in wide-range watchdog circuit to eliminate system crashes;
4. Multiple standard selections: the instrument program includes GB/T507-1986, GB/T507-2002, DL429.9, IEC156, and self-programming operation, accommodating various user choices;
5. The instrument's oil cup is made of special glass and polymer materials, finely processed to prevent oil leakage and corrosion;
6. The high-voltage end sampling design of the instrument allows test values to directly enter the A/D converter, avoiding errors in analog circuits and making measurement results more accurate;
7. The instrument has internal protections such as overcurrent, overvoltage, and short circuit, and has strong anti-interference capability with good electromagnetic compatibility;
8. It can switch between Chinese and English at will to meet any customer's needs;
9. The instrument itself has data analysis functions to assist staff in determining oil quality;
10. 232 data transmission;

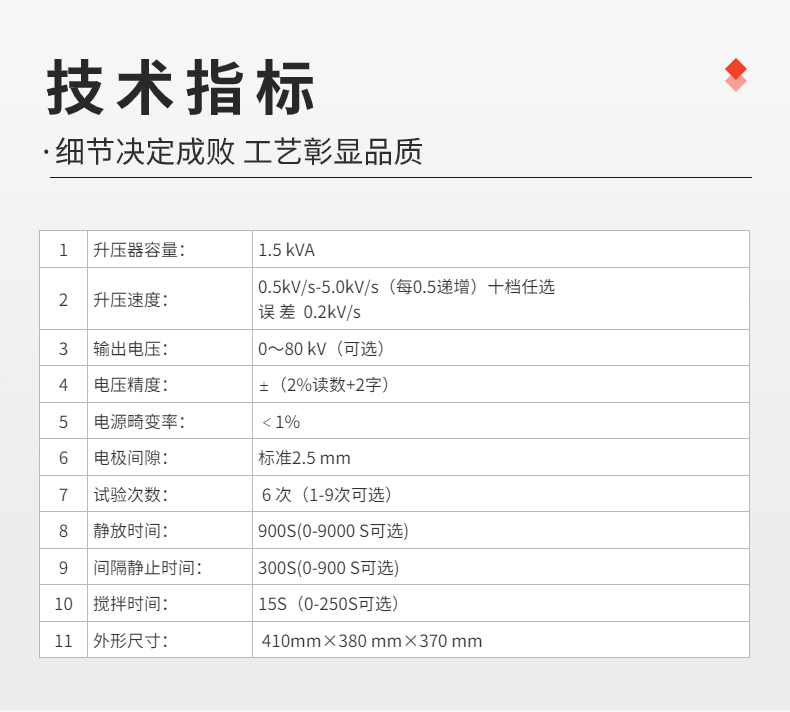

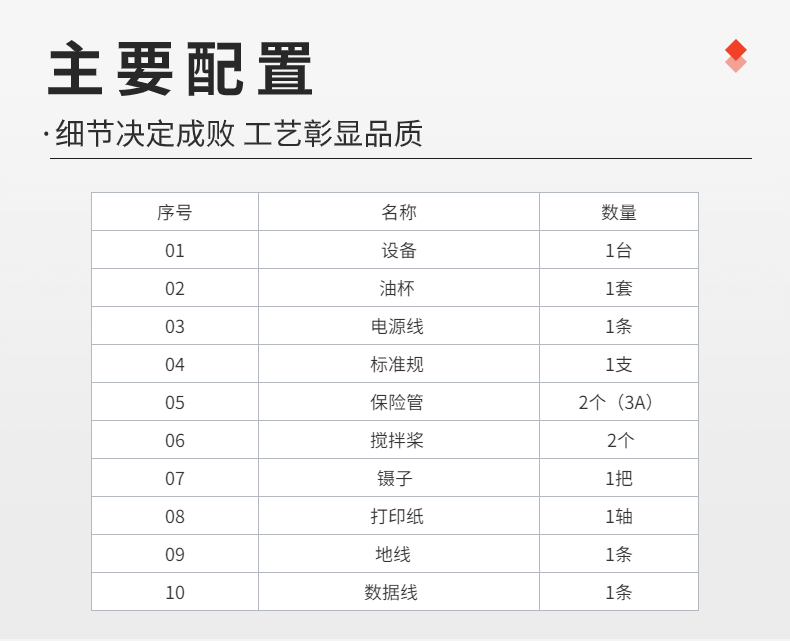

III. Technical Specifications
1. Booster capacity: 1.5 kVA
2. Voltage rise speed: 0.5kV/s-5.0kV/s (in increments of 0.5) with ten options
3. Output voltage: 0～80 kV (optional)
4. Voltage accuracy: ±(2% reading + 2 digits)
5. Power distortion rate: <1%
6. Electrode gap: standard 2.5 mm
7. Number of tests: 6 times (1-9 times optional)
8. Rest time: 900S (0-9000 S optional)
9. Interval rest time: 300S (0-900 S optional)
10. Stirring time: 15S (0-250S optional)
11. Dimensions: 410mm×380 mm×370 mm

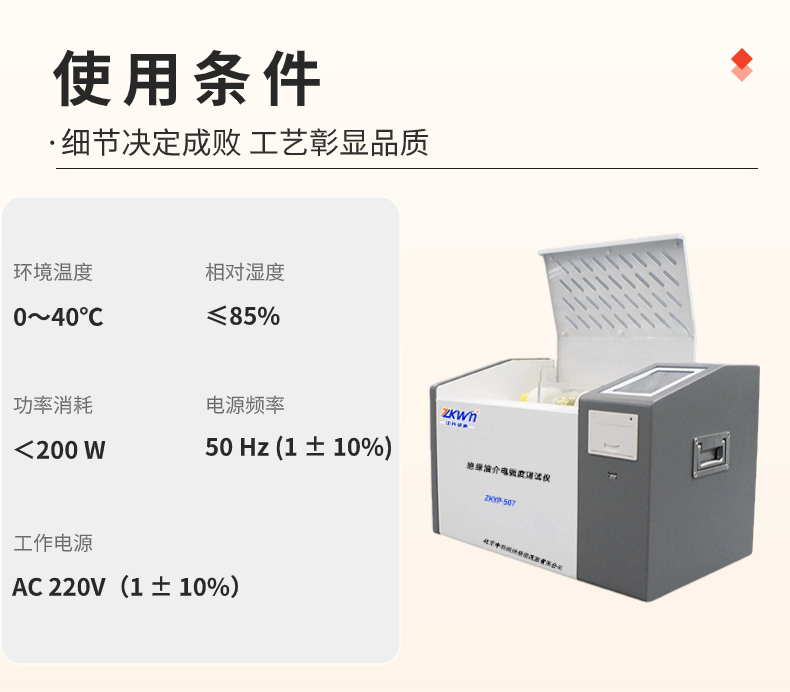

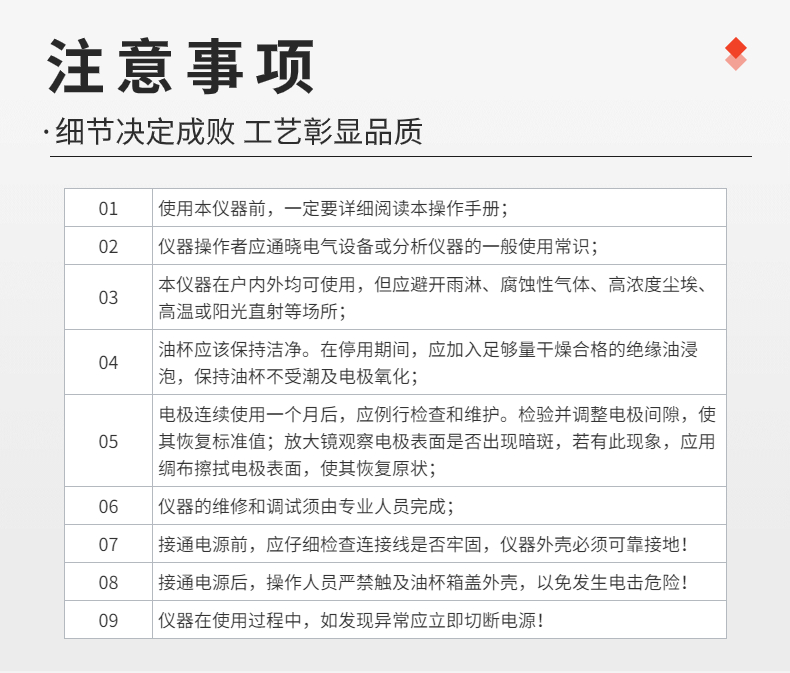

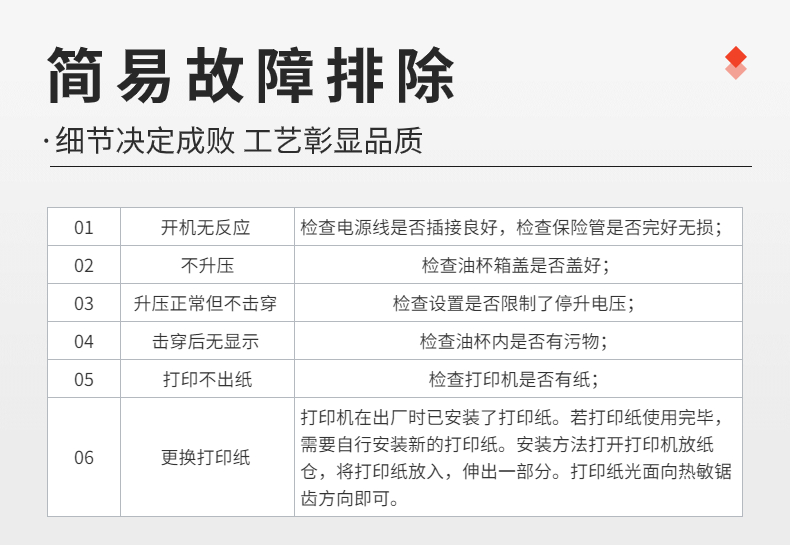

IV. Operating Conditions
1. Ambient temperature: 0～40℃
2. Relative humidity: ≤85%
3. Working power supply: AC 220V (1 ± 10%)
4. Power frequency: 50 Hz (1 ± 10%)
5. Power consumption: <200 W
