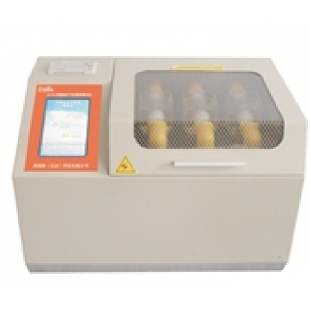

Instrument Features
★ The instrument adopts a large-capacity single-chip microcomputer control, ensuring stable and reliable operation;
★ The instrument is equipped with a wide-range watchdog circuit to eliminate the phenomenon of system crashes;
★ Multiple operation options are available. The instrument program includes two national standard methods, GB1986 and GB2002, as well as custom operations, to accommodate various user preferences;
★ The instrument's oil cup is made of special glass cast in one piece, eliminating interference such as oil leakage;
★ The instrument's unique high-voltage end sampling design allows test values to directly enter the A/D converter, avoiding errors in analog circuits and making measurement results more accurate;
★ The instrument has built-in protections such as overcurrent, overvoltage, and short circuit, and possesses strong anti-interference capability with good electromagnetic compatibility;
★ Portable structure, easy to move, convenient for both indoor and outdoor use.
Technical Parameters
★ Step-up transformer capacity 1.5 kVA
★ Step-up speed 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four gears optional
★ Output voltage 0～100 kV
★ Power supply distortion rate ＜1%
★ Display mode Large-screen LCD with Chinese characters
★ Electrode gap Standard 2.5 mm
★ Dimensions 409 mm×393 mm×388 mm
★ Instrument weight 29 kg；
★ Ambient temperature 0～40℃
★ Relative humidity ≤85%
★ Working power supply AC 220V ± 10%
★ Power frequency 50 ± 5 Hz
★ Power consumption ＜200
