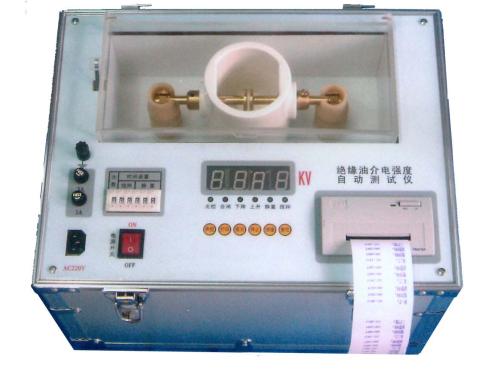

6803E Fully Automatic Insulating Oil Dielectric Strength Tester Price

6803E Fully Automatic Insulating Oil Dielectric Strength Tester Price

Published: 2020-08-19 15:51:01

Category: Insulating Oil Dielectric Strength Tester

Product Description

6803E Fully Automatic Insulating Oil Dielectric Strength Tester Price

Dari Electric recommends for you

Main Functions and Features

●This instrument adopts an integrated structure with three oil cups. It uses a microprocessor to automatically complete operations such as voltage rise and hold, stirring, static settling, calculation, and printing.

●It features a large-screen LCD display with Chinese menu prompts for easy operation. A thermal printer is used for better printing results.

●It can continuously record 100 sets of test results, which are not lost even when power is off.

●Test parameters can be modified according to actual conditions and are stored immediately upon setting, providing convenience for users.

●This instrument is equipped with protections such as overvoltage, overcurrent, and limit protection to ensure the safety of operators.

●It has temperature measurement and display functions as well as a system clock display.

●It complies with the standards GB/T507-2002 and DL/T429.9-1991.

Operating Conditions

Ambient temperature: 0℃～＋40℃

Relative humidity: <80%RH

Technical Specifications

Power supply voltage: AC 220V±22V

Power supply frequency: 50Hz±2.5Hz

Voltage distortion rate: <3%

Power: 200W

Output voltage: 0～60kV,0～80kV (optional)

Note: The above information and technical parameters are compiled and published by Yangzhou Dari Electric Co., Ltd.
