Product Description

6806E Fully Automatic Insulating Oil Dielectric Strength Tester Price

Dare Electric recommends for you

Main functions and features

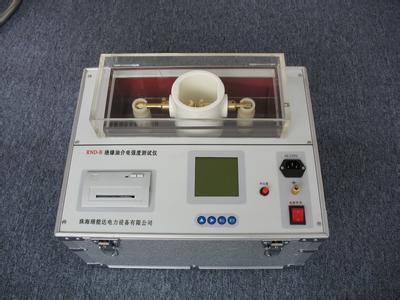

●This instrument is an integrated structure with six oil cups. It uses a microprocessor to automatically complete operations such as voltage boosting and holding, stirring, resting, calculation, and printing.

●It adopts a large-screen LCD display with Chinese menu prompts for easy operation. It uses a thermal printer for better printing results.

●It can continuously record 100 sets of test results, which are not lost upon power failure.

●Test parameters can be modified according to actual conditions and are stored immediately after setting, which is convenient for users.

●This instrument has protections such as overvoltage, overcurrent, and limit protection to ensure the safety of operators.

●It has temperature measurement and display functions as well as system clock display.

●It complies with GB/T507-2002 and DL/T429.9-1991 standards.

Operating conditions

Ambient temperature: 0℃～＋40℃

Relative humidity: <80%RH

Technical specifications

Power supply voltage: AC 220V±22V

Power supply frequency: 50Hz±2.5Hz

Voltage distortion rate: <3%

Power: 200W

Output voltage: 0～60kV,0～80kV (optional)

Note: The above information and technical parameters are compiled and released by Yangzhou Dare Electric Co., Ltd.
