Product Details

Product Description

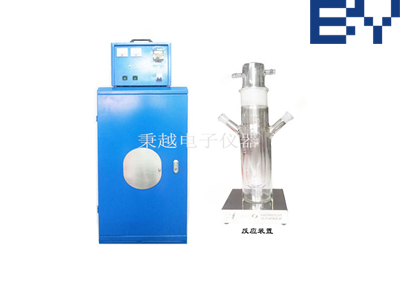

Shanghai Bingyue Brand Large Capacity Photochemical Reaction Device is mainly used to study photochemical reactions under conditions such as gas or liquid phase media, fixed or flowing systems, ultraviolet light or simulated visible light irradiation, and whether the reaction vessel is loaded with TiO2 photocatalyst. It has functions such as providing samples for analyzing reaction products and free radicals, determining reaction kinetic constants, and measuring quantum yields. It is widely used in research fields such as chemical synthesis, environmental protection, and life sciences.

Main Features:

1. Intelligent microcomputer control, real-time observation of current and voltage changes
2. Imported light source controller, built-in light source converter, continuously adjustable power, high stability
3. Large capacity photochemical reaction device has step-by-step timing function, easy operation
4. The inner wall of the reaction dark box is made of radiation-proof material and has an observation window
5. Internal illumination light source, full light exposure, lamp source made of high-pressure resistant and shockproof material, durable
6. Equipped with high-power magnetic stirrer to fully mix and expose samples to light
7. Double-layer quartz cold trap resistant to high and low temperatures, can be connected to cooling water circulation to maintain reaction temperature
8. High temperature protection system, automatic power-off function
9. The external structure of the chassis has circulating water inlet and outlet, and there are 2 dedicated sockets inside for the light source and stirring reactor

Technical Parameters:

Model: BYGHX-B
(I) Main Body Part
1. Light source power can be continuously adjusted.
2. Integrated light source controller, suitable for mercury lamps, xenon lamps, metal halide lamps and other light sources.
3. Mercury lamp power adjustment range: 0~1000W continuously adjustable.
4. Xenon lamp power adjustment range: 0~1000W continuously adjustable.
5. Metal halide lamp power adjustment range: 0~500W continuously adjustable.
(II) Large Capacity Reaction Part
1. Glass reaction vessels can be selected from 250ml, 500ml, 1000ml, etc. (or customized).
2. High-power QL magnetic stirrer to fully mix and expose samples to light.

Product Configuration:
