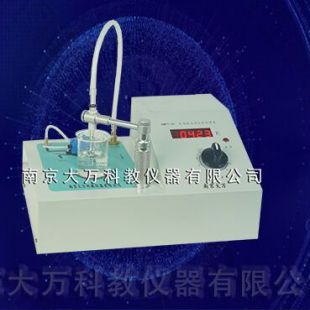

Surface Tension Measurement Apparatus DMPY-3C Da Wan Ke Jiao

Surface Tension Measurement Apparatus DMPY-3C Da Wan Ke Jiao

Published: 2024-10-01 05:50:01

Category: High Current Generator装置

Product Description

Product Features

Features:

*1. Integrated design of peristaltic pump, micro differential pressure measurement, and surface tension apparatus

2. Peristaltic pressure output replaces drip pressurization, avoiding the problem of fragile glass instruments

*3. Peristaltic pump output is digitally adjustable in 10 levels, and bubble overflow rate is easier to control than glass piston drip

4. Pressure output can work continuously for a long time without interruption due to adding or changing water

*5. Equipped with precision capillary height adjustment rod, making it easy to adjust the tangent liquid level

6. Pressure pipeline panel diagram, external peristaltic pump, clear principle display

7. Built-in constant temperature jacket, can be connected to circulating water for constant temperature, or use a constant temperature platform

*8. Touch membrane switch with buttons, dual display units: mmH2O/Pa

Detailed Introduction

Technical Specifications:

1. Differential pressure adjustment and measurement range: -10 KPa ~ +10KPa

2. Differential pressure resolution: 0.001kPa

3. Dual unit pressure display: Pa/mmH2O

*4. Four and a half digit display, with 1.5S peak hold function

5. Bubble speed: digitally adjustable in 10 levels

*6. The capillary outlet is provided with a bubble-shaped cavity. The bubble-shaped cavity is located 3-12mm above the outlet, and its diameter is 2-5 times the tube diameter

7. Capillary height adjustment rod travel greater than: 50mm
