ADCMT6146ADVANTEST Voltage/Current Generator
Product Introduction JIANG
ADCMT 6146 DC Voltage/Current Generator | ADVANTEST ADVTEST It is an ideal precision voltage/current generator for characteristic evaluation in research and development of electronic components and modules, characteristic testing on production lines, and calibration of meters and measuring instruments.
Product Details

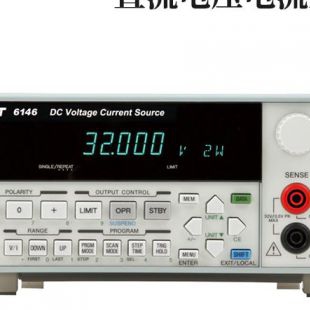

ADCMT6146 DC Voltage/Current Generator | ADVANTEST ADVTEST
Brief Introduction:
ADCMT6146 DC Voltage/Current Generator | ADVANTEST ADVTEST It is an ideal precision voltage/current generator for characteristic evaluation in research and development of electronic components and modules, characteristic testing on production lines, and calibration of meters and measuring instruments. This instrument is designed using ADC's high-precision voltage and current generation circuit technology with years of proven performance, achieving wide dynamic range, high resolution, high accuracy, and low output noise, enabling the construction of more reliable and high-throughput measurement systems. In addition, it incorporates many features that consider standalone use and integration into automated measurement systems, improving user convenience.
Technical Specifications:
■ | 4 1/2-digit wide dynamic range, high resolution voltage/current generation |
Voltage generation: 0 to ±32.000V (resolution: 1μV) | |
Current generation: 0 to ±220.00mA (resolution: 100nA) | |
■ | High accuracy guaranteed for 1 year |
Basic accuracy Voltage generation: ±0.025%, Current generation: ±0.03% | |
■ | Output noise: 100μVp-p (30V range, DC to 100Hz band) |
■ | Bipolar output with source/sink capability |
■ | Multiple units can be operated synchronously |
■ | Standard equipped with various interfaces |
USB, GPIB | |
BCD parallel interface as an option at shipment |
