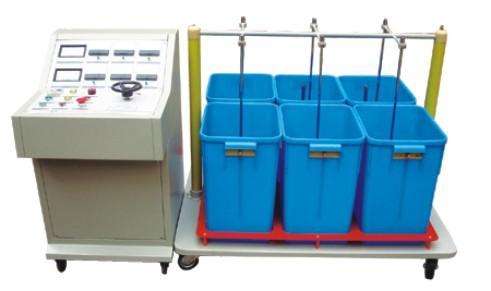

Customized Insulating Shoes and Gloves Withstand Voltage Test Device with Printing
Product Performance:
1. The insulating boots and gloves withstand voltage test device can set parameters to perform preventive insulation tests on other products.
2. The insulating boots and gloves withstand voltage test device consists of two parts: high-voltage testing device and data processing.
3. The insulating boots and gloves withstand voltage test device has complete test items. It can perform intelligent insulation preventive tests for insulating boots, high-voltage insulating gloves, and low-voltage insulating gloves.
4. Parameters can be set to perform leakage current measurement tests on other products.
5. The test process is controlled by a microcomputer, and voltage increase and decrease are completed automatically.
6. High and low voltage are isolated, ensuring safety and reliability.
7. Chinese menu display, human-machine dialogue operation, easy to operate.
8. Up to 6 test specimens can be tested simultaneously, improving work efficiency.
9. Automatically prints test reports.
Technical Parameters:
1. Input voltage: ~220V 50Hz
2. Output voltage: 0-30kV
3. Capacity: 3kVA
4. Number of test specimens: 6 per test
5. Measurement data: can display and print the voltage value and leakage current value of each test specimen
6. Overcurrent protection; overvoltage protection; custom time, voltage, and leakage current values
7. LCD display, full Chinese menu operation, with printing
8. Measurement accuracy: voltage ±2% (±3 digits) current ±2% (±3 digits)
9. Weight: Insulating boots (gloves) operation box 12Kg, power frequency withstand voltage test bench 60kg
Working Principle:
The insulating shoes and gloves withstand voltage test device is connected to a 0~220V power supply. By adjusting the power frequency withstand voltage test bench, based on the electromagnetic induction principle of the test transformer, the transformer generates 0~30KV power frequency high voltage to each electrode, so that the insulating boots (gloves) obtain the specified test voltage. According to the insulating boots (gloves) test regulations, read and record the test parameters.
Manufacturer customized insulating shoes and gloves withstand voltage test device with printing
