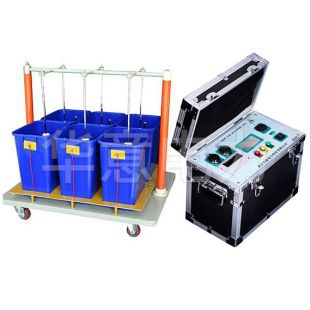

JYX-HI Insulating Boots (Gloves) Withstand Voltage Test Device (Automatic) is designed and produced according to the test regulations for insulating boots (gloves) and following the opinions of the majority of users. This product adopts fully automatic voltage increase (decrease), automatically reads the leakage current of each test sample, and the entire process is fully automatic, automatically printing test data, effectively solving the irregular test methods of the past, thereby simplifying test procedures and improving test speed. It can more reliably identify parameters such as leakage current and power frequency withstand voltage of insulating boots (gloves). It ensures the safety of test workers and is an ideal special device for insulating boots (gloves). Its main features: can test 3 pairs of insulating boots (gloves) simultaneously, and can read the leakage current of each one, accurately judging unqualified insulating boots (gloves); the bottom of the structure is equipped with casters for easy movement.
JYX-HI Insulating Boots/Gloves Withstand Voltage Device (Automatic) Features and Advantages
1. Automatic and Fast: The voltage regulation process is controlled by a high-precision stepper motor, and the withstand voltage test is fully automatic according to the test parameters specified in national standards. After the test starts, the instrument automatically closes the switch and raises the voltage at the speed required by national standards. When the preset voltage is reached, timing begins and the test voltage is maintained. After the preset time, the voltage is automatically reduced, and after reaching zero, the power is automatically cut off, indicating the end of the test. At the same time, the leakage current of each test sample is displayed, along with the test results;
2. Comprehensive Functions: Full Chinese interface, working status display, simple and clear operation, wide applicability; with status display and reminder functions, users can see the device status at a glance; rotary mouse operation, all functions can be set through one rotary mouse, fully digital adjustment, abandoning the outdated potentiometer adjustment method, making on-site use extremely convenient; buttons directly set target voltage, leakage current, and withstand voltage time, easy to use;
3. Intelligent Safety Protection: Equipped with overcurrent and overvoltage protection. Accurate and rapid protection effectively ensures the safety of personnel and equipment;
4. Large Output Voltage and Flexible Measurement: The device can output any voltage from 1-30kV, the leakage current threshold can be set arbitrarily from 1-20mA, and the test time can be set arbitrarily from 1-10 minutes. At the same time, common insulation equipment parameters are integrated into modules according to national standards, making testing convenient and fast;
5. User-Friendly Interface: White backlight large screen 320*240
dot matrix Chinese character graphic interface, clear and beautiful text; clearly visible under strong light, with high-performance rotary mouse, simple and convenient operation, long lifespan; built-in high-speed micro printer for instant printing of test data;
