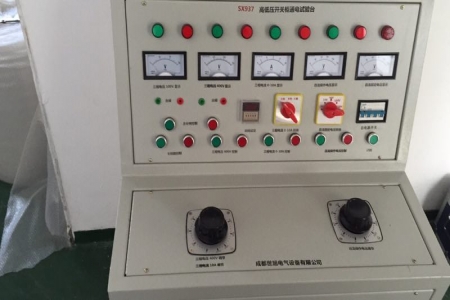

Switchgear Power-on Test Bench Price
Dari Electric recommends for you
Parameters:
Input power: Three-phase four-wire AC380V
Output voltage and current:
1. Three-phase AC100V output (fixed value) one set
2. Three-phase AC 0 - 10A output (<100V, adjustable value> one set
3. Single-phase 24V, 36V, 110V, 220V DC fixed output one set
4. AC operation voltage output
AC 0 - 400V, at 220V, current less than 10A one set
5. DC operation voltage output DC 0 - 260V one set
6. DC closing power supply output DC 0 -250V (300A, short-time operation) one set
7. Single-phase AC220V output (fixed value, socket form) two sets
8. Three-phase AC380V output (fixed value, terminal) one set
9. Closing control contacts ⑤, ⑧ Opening control contacts ⑥, ⑦
10. Fixed value output: DC24V, 36V, 110V
11. Dimensions/Weight: 550×750×800mm/45Kg
Taking the verification of a single-phase AC voltmeter as an example:
1. Connect the input power AC380V
2. Connect the AC operation voltage output power line to the voltmeter
3. Check and confirm the wiring is correct, turn on the main power switch 4. Return the voltage regulator to zero, and press the "Close" button,
5. Then press the "Close" button for AC operation voltage on the panel
6. Slowly adjust the output adjustment knob to raise the voltage to the required value, and observe the voltmeter.
7. After the test, first press the "Open" button for AC operation voltage on the panel, then press the main "Open" button on the panel. Then, turn off the main power switch
Note: The above information and technical parameters are compiled and released by Yangzhou Dari Electric Co., Ltd.
