Swedish DV POWER

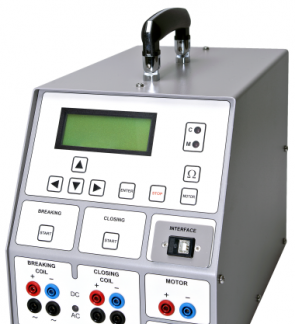

SAT30A Circuit Breaker Coil Analyzer can match circuit breaker analyzers of any brand. Tests can be performed in standalone mode or connected to a computer for DV-Win application function settings.

Swedish DV POWER SAT30A Circuit Breaker Coil Analyzer Product Introduction:
•SAT Series - Circuit Breaker Coil Analyzer: These devices perform circuit breaker tests when the battery is not connected or unavailable.
•Can match circuit breaker analyzers of any brand. Tests can be performed in standalone mode or connected to a computer for DV-Win application function settings.
•The instrument can effectively combine with CAT models.
•This method effectively reduces test time.
•By connecting to a computer for DV-Win application settings, control test steps, result extraction, storage, editing, etc.
•Additionally, POB supports the SAT series to provide a coil resistance test during undervoltage testing.

We will strive to translate and edit according to the original factory technical parameters. If there are differences between Chinese and English technical parameters, the English parameters shall prevail.

Swedish DV POWER SAT30A Circuit Breaker Coil Analyzer Technical Parameters:

Load Voltage	Maximum Load Interval	Maximum Current
110 V	20 sec	24 A
110 V	60 sec	20 A
220 V	20 sec	12 A
220 V	60 sec	10 A

Output Power Supply
Coil Output DC Voltage	10 V DC - 300 V DC
Coil Output AC Voltage	10 V AC - 250 V AC
Motor Output DC Voltage	10 V DC - 250 V DC
Coil Resistance Test
Test Range	Resolution
0.5 Ω - 99.9 Ω	0.1 Ω
100 Ω - 999 Ω	1 Ω
Minimum Trigger Voltage - Fully Automatic Test
Start Voltage	10 V - 299 V DC 10 V - 249 V AC
Stop Voltage	11 V - 300 V DC 11 V - 250 V AC
Voltage Step	1 V - 20 V DC 1 V - 20 V AC
Accuracy	± (0.25 % rdg + 0.25 % FS)
Operating Temperature	-10º C – + 50 ºC
