Sweden DV POWER
RMO500G Circuit Breaker Test Equipment To perform tests at a distance, RMO-G and RMO-D devices can be remotely controlled. Additionally, they can perform multiple tests in the same test circuit, which significantly speeds up the testing procedure.

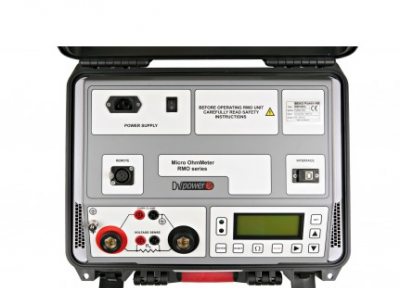

Sweden DV POWER RMO500G Circuit Breaker Test Equipment Product Introduction:
•RMO-G series - Micro-ohmmeter with dual grounding feature
•The high DC micro-ohmmeter RMO-G series instruments are mounted on a plastic case and have additional "dual grounding" and "remote control" features,
as expandable functions for its measurement
•In high-voltage circuit breaker contact resistance testing, a very effective method to protect against induced voltage is to ground both ends of the circuit breaker under test. RMO-G and RMO-D series test instruments have the capability to ground both ends of the test object, ensuring operator safety and good protection of the instrument. The figure shows the dual grounding connection of the instrument to the high-voltage circuit breaker.
•To perform tests at a distance, RMO-G and RMO-D devices can be remotely controlled. Additionally, they can perform multiple tests in the same test circuit,
which significantly speeds up the testing procedure.
Sweden DV POWER RMO500G Circuit Breaker Test Equipment Product Features:
•Lightweight - only 11 kg / 24 lbs
•Power 5 A - 600 A DC
•True DC ripple-free current
•Test range 0.1 μΩ - 999.9 mΩ
•High resolution 0.1 μΩ
•Single/Continuous/Dual grounding modes
•DV-Win software
Sweden DV POWER RMO500G Circuit Breaker Test EquipmentStandard Accessories:
•Test shunt 100 μΩ
•Thermal printer (built-in)
•Dual grounding unit (current clamps)
•Remote control device
RMO-G Series
•RMO100G
•RMO200G
•RMO300G
•RMO400G
•RMO500G
•RMO600G
•RMO800G
