Sweden DV POWER

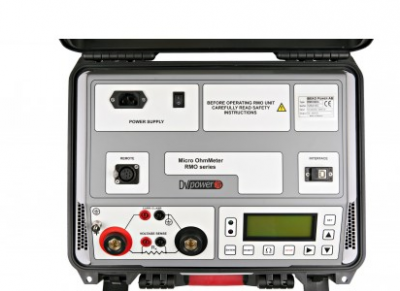

RMO800G Circuit Breaker Test Equipment High DC Micro-ohmmeter RMO-G series instruments are installed in plastic cases and have additional "double grounding" and "remote control" features as expandable measurement functions.
Sweden DV POWER RMO800G Circuit Breaker Test Equipment Product Introduction:
•RMO-G series - Micro-ohmmeter with double grounding feature
•High DC micro-ohmmeter RMO-G series instruments are installed in plastic cases and have additional "double grounding" and "remote control" features,
as expandable measurement functions
•In high-voltage circuit breaker contact resistance testing, a very effective method to protect against induced voltage is to ground both ends of the circuit breaker under test. RMO-G and RMO-D series test instruments have the ability to ground both ends of the test object, ensuring operator safety and good instrument protection. The figure shows the double grounding connection of the instrument to the high-voltage circuit breaker.
•To perform tests remotely, RMO-G and RMO-D devices can be remotely controlled, and they can also perform multiple tests in the same test circuit, which significantly improves the speed of the testing procedure.
Sweden DV POWER RMO800G Circuit Breaker Test Equipment Product Features:
•Lightweight - only 11 kg / 24 lbs
•Power 5 A - 600 A DC
•True DC ripple-free current
•Test range 0.1 μΩ - 999.9 mΩ
•High resolution 0.1 μΩ
•Single/continuous/double grounding modes
•DV-Win software
Sweden DV POWER RMO800G Circuit Breaker Test Equipment Standard Accessories:
•Test shunt 100 μΩ
•Thermal printer (built-in)
•Double grounding unit (current clamps)
•Remote control device
RMO-G Series
•RMO100G
•RMO200G
•RMO300G
•RMO400G
•RMO500G
•RMO600G
•RMO800G
