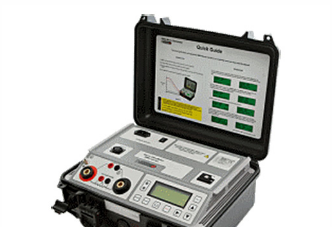

The Sweden DV POWER RMO100G circuit breaker test equipment is mounted on a plastic case and features additional "double grounding" and "remote control" as its expandable measurement functions.
Product Introduction of Sweden DV POWER RMO100G Circuit Breaker Test Equipment:
•RMO-G series - micro-ohmmeter with double grounding function
•The high DC micro-ohmmeter RMO-G series instruments are mounted on a plastic case and feature additional "double grounding" and "remote control" as their expandable measurement functions.
•In high-voltage circuit breaker contact resistance testing, a very effective method to protect against induced voltage is to ground both ends of the circuit breaker under test. The RMO-G and RMO-D series test instruments have the capability to ground both ends of the tested object, ensuring operator safety and good instrument protection. The figure shows the double grounding connection of the instrument to the high-voltage circuit breaker.
•In order to perform tests remotely, the RMO-G and RMO-D devices can be remotely controlled. Additionally, they can perform multiple tests in the same test circuit, which significantly speeds up the testing procedure.
Product Features of Sweden DV POWER RMO100G Circuit Breaker Test Equipment:
•Lightweight - only 11 kg / 24 lbs
•Power 5 A - 600 A DC
•True DC ripple-free current
•Test range 0.1 μΩ - 999.9 mΩ
•High resolution 0.1 μΩ
•Single/Continuous/Double grounding modes
•DV-Win software
Standard Accessories of Sweden DV POWER RMO100G Circuit Breaker Test Equipment:
•Test shunt 100 μΩ
•Thermal printer (built-in)
•Double grounding unit (current clamp)
•Remote control device
RMO-G Series
•RMO100G
•RMO200G
•RMO300G
•RMO400G
•RMO500G
•RMO600G
•RMO800G
