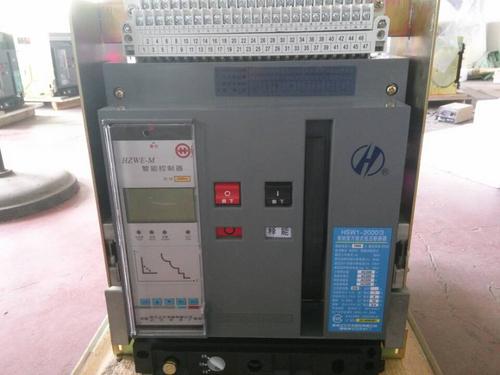

3200A(3P) Air Circuit Breaker Fixed Type Drawer Type Air Circuit Breaker
The 3200A(3P) Air Circuit Breaker (hereinafter referred to as the circuit breaker) is suitable for power distribution networks with a frequency of 50Hz, rated working voltage of 400V and 690V, and rated current from 630A to 6300A. It is used to distribute electrical energy and protect lines and power equipment from damage caused by overload, undervoltage, short circuit, single-phase grounding and other faults. The circuit breaker has intelligent protection functions, precise selective protection, which can improve the reliability of power supply and avoid unnecessary power outages. It features compact structure, small size, and high breaking capacity. The enclosed contact system achieves zero arc flash. The intelligent controller has functions such as testing, load monitoring, large information display, on-site programming, and communication, enabling complete three-stage or four-stage protection.
Technical Parameters CDW1-3200/3P/4P/3200A Fixed Type Drawer Type Air Circuit Breaker
Compliance Standards:
This product complies with GB/T14048.1-2006 "General Rules for Low-Voltage Switchgear and Controlgear" and GB14048.2-2008 "Low-Voltage Switchgear and Controlgear - Low-Voltage Circuit Breakers", and also meets the requirements of IEC60947-2 "Low-Voltage Switchgear and Controlgear - Part 2: Low-Voltage Circuit Breakers".
Normal Working Conditions and Installation Conditions:
* The ambient air temperature is: -5℃ to +40℃, with a 24-hour average not exceeding +35℃
* Atmospheric conditions: The relative humidity of the atmosphere does not exceed 50% when the ambient air temperature is +40℃. Higher relative humidity is allowed at lower temperatures, for example, 90% at 20℃. Special measures should be taken for occasional condensation caused by temperature changes.
* Pollution degree: Level 3
* The circuit breaker should be installed vertically, with a vertical tilt angle not exceeding 5°
* Wiring methods: Horizontal wiring, vertical wiring
