Overview:

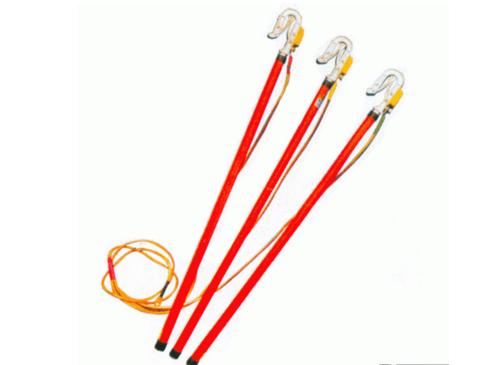

Outdoor short-circuit grounding wire is composed of an insulating operating rod and a grounding wire clamp. The insulating operating rod is made of raw materials such as epoxy resin with excellent insulation performance, meeting high-voltage insulation requirements and ensuring the safety of electrical maintenance personnel; there are many types of grounding wire clamps, mainly used for temporary grounding of high-voltage busbars. According to whether the high-voltage busbar is a busbar or a cable, choose a flat-mouth grounding wire clamp or a line grounding wire clamp respectively.



Outdoor short-circuit grounding wireStructural features:

1. Main parts such as the wire clamp are made of aluminum alloy die-casting, and the wire clamp is durable.

2. Easy operation, especially the spring-press type, just hang it on the wire and pull it.

3. Reasonable matching and reliable function. According to the voltage level, reasonably select the "grounding wire"; the wire clamp has a simple structure and a large contact area with the wire.

4. The wire clamp has a wide practical range and adapts to the needs of different wire cross-sections.

Product name: Flat-mouth spiral compression grounding rod

Model: 10KV, 35 KV, 66 KV, 10 KV, 220 KV, 500 KV

      1m, 1.5m, 2m, 3m, 4m (can be extended according to customer requirements)

Material: Insulating fiberglass

Applicable environment: Indoor busbar, substation busbar

According to different voltage levels, the three-phase short-circuit grounding wire, three-phase combined short-circuit grounding wire, high-voltage grounding wire, portable short-circuit grounding wire, high-voltage grounding wire, and combined short-circuit grounding wire can be divided into 380V, 6KV, 10KV, 20kv, 35KV, 66KV, 110KV, 220KV, 330KV, and 500KV.
