Product Details

FDB-10KV Double-Tongue Short-Circuit Grounding WireOverview:

1. Purpose of short-circuit grounding wire:

Used in line and substation construction to prevent electric shock caused by electrostatic induction from nearby live parts or to ensure safety during accidental closing.

2. FDB-10KV Double-Tongue Short-Circuit Grounding WireOverview:

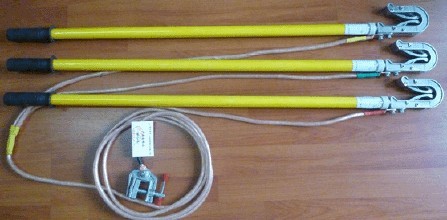

The portable short-circuit grounding wire consists of an insulating operating rod and a wire clamp. The wire clamp is made of high-quality aluminum alloy die-casting, with high strength, and after surface treatment, the surface of the clamp is not prone to oxidation. The operating rod is made of imported epoxy resin into a colored tube, with good insulation performance, high strength, light weight, bright colors, and smooth appearance.



Notes:

1. Short-circuit grounding wires are divided into two categories: phase-separated and combined, and there are two types of wire-end clamps: flat-mouth and hook-type. Please specify when ordering.

2. The cross-sectional area and length of the soft copper wire are matched according to the specific requirements of the user.

3. When ordering, the wire specification range and the voltage level of use must be stated.

4. The insulating operating rod is selected and matched according to the user's requirements.

5. This factory is equipped with special grounding electrodes, which users can choose as needed.
