Product Details

Instrument Introduction：

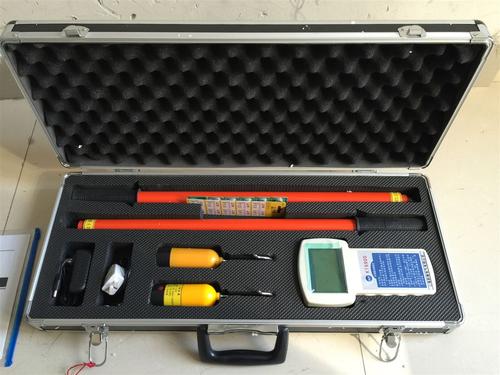

The wireless high voltage digital phase detector is used for phase verification and phase sequence verification in power lines and substations. It has functions such as phase detection, phase sequence measurement, and voltage detection. It has strong anti-interference capability, complies with (EMC) standards, and adapts to various electromagnetic interference environments. The high voltage phase signal to be measured is taken out by the collector and transmitted directly after processing. The phase detector receives and compares the phases, and then determines the result after phase comparison.

This product is safe, reliable, stable in performance, and easy to operate. It is an ideal phase detection instrument.

Instrument Features：

Screen display content: Wireless high voltage phase detector, different phase, same phase, X, Y ,

Power supply: One battery for the main unit (NEDA/604/6F22) or equivalent model. X and Y collectors use 5 AG13 batteries.

Auto power off: The main unit automatically powers off about 15 minutes after power on.

Backlight: During phase detection, if the light is too dim and reading data is difficult, press the backlight switch.



Technical Parameters:

Voltage level: 0.38kv～500kv

 Main unit power: 9V ±2V

 Collector power: 7.5V ±1.5V

 Line-of-sight transmission distance between main unit and X, Y collectors: X≥80mY≥50m

 Working environment: -35℃～+50℃≤95%RH  Humidity:

 Storage environment: -40℃～+55℃≤95%RH  Humidity:

Note: The above information and technical parameters are compiled and released by Yangzhou Darui Electric Co., Ltd.
