Product Details

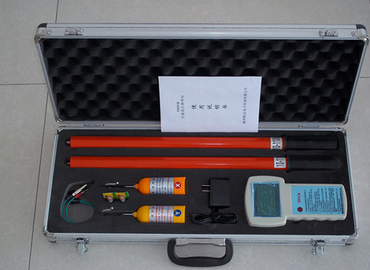

TAG-6000 High Voltage Wireless Phase Verification Instrument Technical Parameters:

Application Range: 6～35kV, 110KV, 220KV, 500KV and other voltage levels

Test Object Status: Live parts of lines or equipment

Height Above Ground: Less than 15 meters

Maximum Distance Between Transmitters: Less than 30 meters

Equipment Operating Frequency: 1.2GHZ

2. Transmitter

Transmitter N0.1 and Transmitter N0.2 Dimensions: Φ60×120mm Power Supply: 8.4V (Nickel-Metal Hydride rechargeable battery)

3. Receiver Dimensions: 235×130×43mm

Power Battery: 12V Nickel-Metal Hydride rechargeable battery

Functions of Receiver Components

TAG-6000 High Voltage Wireless Phase Verification Instrument Safety Precautions:

1. During on-site testing, operators must follow the relevant requirements of the "Safety Work Regulations for Electric Power". 2. The insulating rod equipped with this instrument is suitable for voltage levels ≤ 220KV.

TAG-6000 High Voltage Wireless Phase Verification Instrument Detailed Overview:

TAG6000 High Voltage Wireless Phase Verification Instrument, phase verification instrument, digital phase verification instrument, is applied to phase calibration and phase sequence calibration of power lines and substations, with functions such as phase verification, phase sequence measurement, and voltage detection. It has strong anti-interference capability, complies with (EMC) standard requirements, and is suitable for various electromagnetic interference occasions. The high-voltage phase signal to be measured is taken out by the collector, processed, and then directly transmitted. The phase verification instrument receives and compares the phase, and qualitatively determines the result after phase verification. Because this product uses wireless transmission, it truly achieves safety, reliability, speed, and accuracy, and is suitable for various phase verification occasions.



Note: The above information and technical parameters are compiled and published by Yangzhou Dari Electric Co., Ltd.
