Junction Box Type PT100 Platinum Resistance Thermometer - Model 6300A
Product Description
The Model 6300A PT100 resistance thermometer is used to measure the temperature of liquids, steam, and other gas media within the range of -200°C to 500°C in various industrial processes. It can be used in conjunction with display instruments, recording instruments, and various control systems. It features a simple structure and is easy to install and use. It has been widely used in industries such as petrochemical, metallurgy, and power stations.
The Model 6300A PT100 resistance thermometer is available in two types: ordinary type and flameproof enclosure marked type.

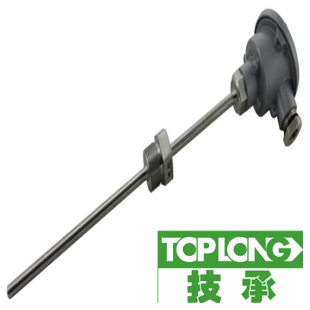

Junction Box Type PT100 Platinum Resistance Thermometer - Model 6300A
Working Principle
The resistance value of the PT100 platinum resistance thermometer changes with temperature, thereby reflecting the temperature value through the resistance.
Product Features
Strong anti-interference output and good remote transmission performance
The signal converter is encapsulated in a module with epoxy resin, which has the advantages of vibration resistance, corrosion resistance, and moisture resistance. It can be used in harsh working conditions.
High precision, anti-interference, good long-term stability, maintenance-free, and can be transmitted remotely (up to 1000 meters).
Performance Parameters
Range | -200~500℃ |
Accuracy Class | 0.25 class, 0.5 class |
Operating Temperature | -40℃~85℃ |
Ambient Humidity | 0-95%RH, non-condensing |
Output Signal | PT100 |
Thread Connection | G1/4 & G1/2 & G3/8 or User's choice |
Junction Box Material | Cast aluminum |
Enclosure Protection Rating | IP65 |
Measurement Range | PT100 resistance thermometer: -200~0°C, -100~0°C, -50～0°C, -50～50 °C; 0～50 °C; 0～80 °C; 0～100 °C; 0～120°C, 0～150°C, 0～200°C, 0～450°C, 0～500°C or any custom range specified by the customer |
Load Resistance | 0~850Ω |
Ambient Temperature Effect | 0.25%/10°C |
Cold Junction Compensation Error | 0.5%/10°C |
Protective Tube Material | 304 stainless steel |
Cold Junction Compensation Error | 0.5%/10°C |
