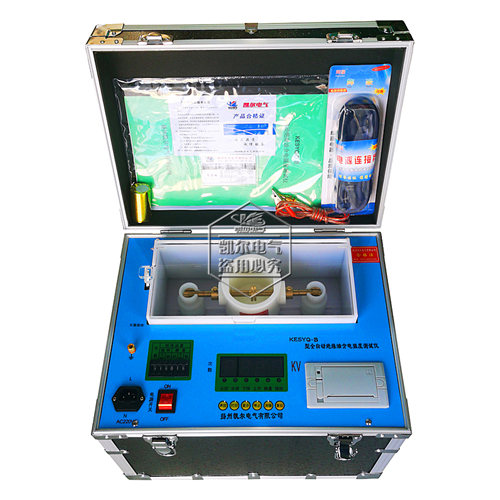

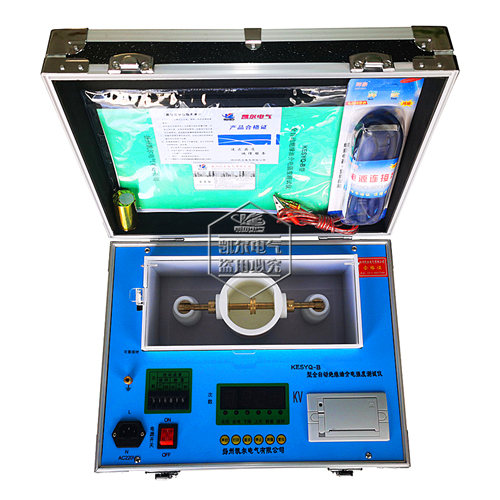

KESYQ-B Automatic Insulating Oil Dielectric Strength Tester
I. Product Overview:
KESYQ-BAutomatic Insulating Oil Dielectric Strength Tester is a fully automated instrument developed based on the KEYSQ-A model, in accordance with the national standard GB507-86 "Insulating Oil Dielectric Strength Determination Method".
KESYQ-BAutomatic Insulating Oil Dielectric Strength Tester uses a microcontroller as the core, adopting a method of setting parameters first and then starting the test. The entire process is automatically controlled by the microcomputer, with automatic printing output, and is simple to operate, suitable for testing the dielectric strength of various insulating oils.
II. Performance Features:
1. This instrument is equipped with an automatic detection function, such as automatically entering the reset state to perform voltage regulator return to zero upon startup;
2. It uses a micro TPU-A panel printer for automatic printing output;
3. According to user requirements, the number of tests, stirring and settling time, and audible/visual reminders for continuous printing or non-printing can be changed;
4. This instrument uses fully automatic magnetic stirrer stirring to eliminate unevenness and bubbles in the oil sample.
III. Technical Specifications:
1. Working Power Supply: AC220V ±10%, 50HZ ±5%
2. Measurement Range: AC 0-80KV
3. Limited Current: 5mA
4. Measurement Accuracy: 3%
5. Voltage Regulation Speed: 2KV/S±10%
6. Preset Settings: Number of tests 1-9
Stirring Time 0-1 minute 39 seconds
Settling Time 0-10 minutes 39 seconds
7. Operating Conditions: Ambient temperature 0℃-35℃ Relative humidity ≤75%
8. Oil Cup Gap: 2.5mm (diameter of oil cup feeler gauge)
9. Dimensions: 415×315×315 (mm)
10. Weight: 28kg
