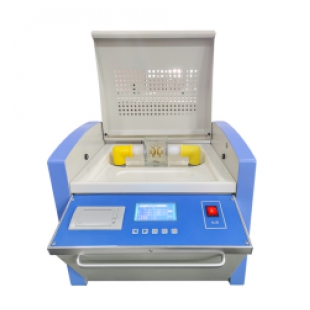

Insulating Oil Dielectric Strength Tester H507N1
H507N1 In power systems, railway systems, and large petrochemical plants and mines, there are numerous electrical equipment whose internal insulation is mostly oil-immersed. The dielectric strength of insulating oil is a routine test that must be performed. To meet market demands, our company has independently developed and produced a series of insulating oil dielectric strength testers based on the national standard GB/T507-2002, industry standard DL429.9-91, and the latest power industry standard DL/T846.7-2004. This instrument uses a single-chip microcomputer as its core, achieving full automation of testing, high measurement accuracy, greatly improving work efficiency, and significantly reducing the labor intensity of staff.
Main Features:
Single-cup integrated structure design for easy operation and portability;
High degree of automation, capable of automatically completing functions such as static placement, voltage boosting, breakdown, stirring, voltage reduction, and printing/storage;
Adopts German Michael Riedel high-end resonant step-up transformer with high-voltage side sampling, featuring small size, light weight, and high numerical accuracy;
Built-in imported German Sonnenschein battery for convenient field use;
Uses Austrian Paul test oil cup, conforming to IEC156 standard;
Built-in standard programs: GB/T507/IEC156/DL429-9/ASTM-D-877/ASTM-1816/VDE0370/custom programs;
Comes with 24-time rapid breakdown cleaning function;
Adopts color touch screen and button dual operation modes, with dual protection not affecting use;
Equipped with temperature sensing device to monitor oil sample temperature at all times;
Program includes automatic calibration function to calibrate device values;
Technical Specifications:
Name Specification
Output Voltage: 0～80kV Oil Sample Temperature Detection Range: 0-99℃
Voltage Distortion Rate ＜2% Temperature Resolution: 0.1℃
Voltage Rise Rate 0.5/1.0/2.0/3.0
Step-up Transformer Capacity 1.5 kVA Voltage Resolution: 0.01kV
Measurement Accuracy 1% Power: ≤100w
Number of Breakdown Tests 1-6 times optional Stirring Time: 0 +∞
Static Placement Time 0-15min optional Breakdown Cut-off Current: 4mA
Interval Time 0-10min optional Breakdown Cut-off Time: not greater than 1ms
Power Supply Voltage 100-260VAC Language Selection: Chinese
Power Supply Frequency 50 /60 Hz ±2%
