Main Functions and Features

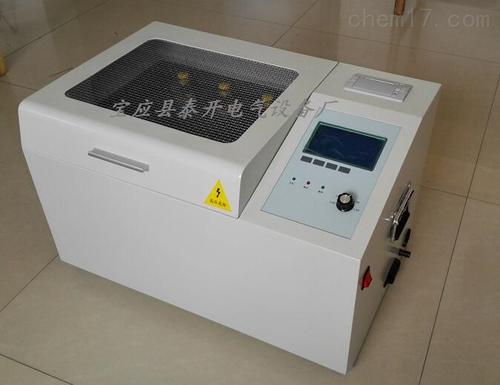

●This instrument adopts a three-oil-cup split structure (control box and oil cup box are separate). The microprocessor automatically completes operations such as voltage boosting, holding, stirring, resting, calculation, and printing.
●It uses a liquid crystal display with Chinese menu prompts, making operation simple.
●This instrument has overvoltage, overcurrent, limit, and other protection functions to ensure the safety of operators.
●This instrument can be equipped with a small-gap oil cup (with separate program) according to user requirements.
●This instrument has strong anti-electromagnetic interference capability and can be used both in laboratories and outdoor field applications.
●It contains a sine wave generator and does not directly use the grid power as the test source, avoiding its impact on test results.
●Complies with GB/T507-2002 and DL/T429.9-1991 standards.
Technical Specifications
Power Supply Voltage: AC 220V±22V
Power Frequency: 50Hz±1Hz
Voltage Distortion Rate: <3%
Power: 200W
Output Voltage: 0～60kV 0～80kV (optional)
Voltage Boosting Speed: 2.0, 2.5, 3.0, 3.5kV/s (adjustable)
Operating Conditions
Ambient Temperature: 0℃～+40℃
Relative Humidity:
<80%RH
