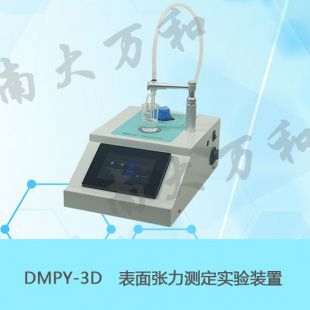

Product Features:
*1. Touch screen menu selection for measurement
2. Integrated design of peristaltic pump, micro differential pressure measurement, and surface tension device
*3. Peristaltic pump speed selectable from 10 menu levels, bubble overflow rate easy to control
4. Instrument has capillary calibration function, can calibrate capillary and save capillary coefficient
5. Equipped with precision capillary height adjustment rod, making it easy to adjust the tangent liquid level
6. Pressure pipeline panel diagram, peristaltic pump external, clear principle display
*7. Panel screen displays real-time pressure change waveform, clear bubble change pressure waveform display
8. Test uses calibrated capillary, directly obtain surface tension value
9. Internal operation video playback function, more convenient guidance for instrument use
Technical Indicators:
1. Touch LCD screen size: 7 inches
2. Differential pressure adjustment and measurement range: -10 KPa ~ +10KPa
3. Differential pressure resolution: 0.001kPa
*4. Pressure output control: 10-level digitally adjustable pressure, bubble overflow rate easier to control than glass piston drip
5. Capillary height adjustment rod travel greater than: 50mm
*6. Capillary coefficient calibration can be performed with standard samples, number of calibratable capillaries: 12
7. Capillary coefficient range: 1.000~100.000
*8. Surface tension measurement range: 0～100mN/m, resolution: 10-3N/m
*9. LCD display, with peak hold function
10. Pressure output can work continuously for a long time
