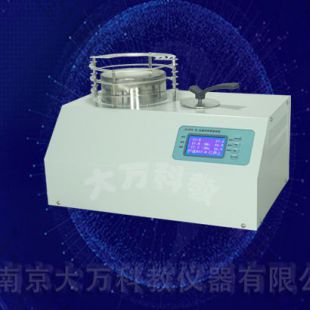

Dake Education - Metal Phase Diagram Measurement Apparatus - JX-6DS

Published: 2024-09-19 09:50:01

Views: 2922

Category: High Current Generator装置

Product Description

Product Features

Features:

1. Artificial intelligence temperature control (heating temperature preset), effectively overcoming the large heat capacity of the heater and temperature overshoot issues

*2. Stainless steel integrated heating and cooling furnace with built-in temperature probe, neat and aesthetically pleasing

3. Pre-loaded stainless steel sample tubes, samples are not easily oxidized, energy-saving and environmentally friendly

4. 6-channel temperature measurement, furnace temperature and status displayed simultaneously

5. Dedicated experimental software for simultaneous color-coded plotting of cooling curves and phase diagrams

Detailed Introduction

Technical Specifications:

*1. Temperature measurement range/resolution: room temperature to 1200°C/0.1°C

2. Maximum heating power: 2000W

3. Maximum insulation power: 50W

4. Target temperature: 0-600°C

6. Display: LCD screen showing 6 channel groups and furnace temperature simultaneously

7. Timing: 0-100 seconds adjustable, audible alarm

*8. Function: automatic inflection point recognition

9. Dedicated experimental software included

*10. Stainless steel 304 sample tube dimensions (6 pieces): Φ18x82mm, wall thickness 2mm

11. Data interface: USB supports all Windows systems
