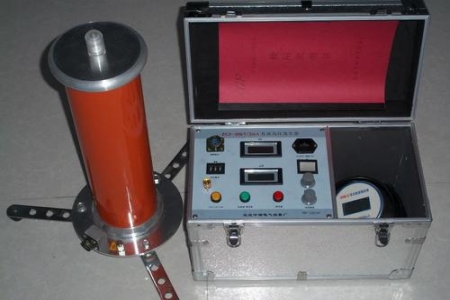

60KV Series Portable DC High Voltage Generator

Product Name: Portable DC High Voltage Generator

Product Model: 1. KEZFG-60KV/2mA

       2. KEZFG-60KV/3mA

       3. KEZFG-60KV/5mA

       4. KEZFG-60KV/10mA

Product Aliases: 1. DC High Voltage Generator

       2. High Voltage DC Generator

       3. DC High Voltage Test Device

       4. Special Tester for DC Leakage of 10KV Zinc Oxide Arrester

Product Details are as follows:

I. Introduction to Portable DC High Voltage Generator Product Introduction

   KEZGF-60KV Series Portable DC High Voltage Generator adopts intermediate frequency voltage doubling circuit, applies PWM pulse width modulation technology and high-power IGBT devices. According to electromagnetic compatibility theory, it adopts special shielding, isolation and grounding measures, with high adjustment accuracy, simple operation, small size, light weight, suitable for power departments and enterprise power departments to conduct DC high voltage tests on zinc oxide arresters, power cables, generators, transformers, switches and other equipment.

   This instrument, in order to facilitate the DC characteristic test of zinc oxide arrester, specially adds a one-key 75% function, which greatly simplifies the operation and calculation process.

   The current output levels of this series of DC high voltage generators are divided into the following specifications: KEZGF-60KV/2mA, KEZGF-60KV/3mA, KEZGF-60KV//5mA, please purchase according to actual needs.

II. Technical Parameters of Portable DC High Voltage Generator

   1. High voltage output range: 0-60KV (Note: negative polarity output)

   2. Current output range: 2-3-5mA (current level selected by user)

   3. Chassis weight: 4Kg

   4. Voltage doubling cylinder weight: 7Kg

   5. Voltage doubling cylinder height: Φ100×500mm

   6. Voltage measurement error: 1.0% (full scale) ±1 digit

   7. Current measurement error: 1.0% (full scale) ±1 digit

   8. Overvoltage setting error: ≤1.0%

   9. 0.75 switching error: ≤0.5%

   10. Ripple coefficient: ≤0.5%

   11. Voltage stability: random fluctuation, power supply voltage variation ±10%, ≤0.5%

   12. Working mode: intermittent use, rated load for 30 minutes

   13. Use at 1.1 times rated voltage: 20 minutes

III. Equipment Completeness

    1. High voltage generator main unit            1 set

    2. Power operation box              1 set

    3. Test leads                 1 set

    4. Digital microammeter              1 piece

    5. Telescopic discharge rod             1 piece

    6. Power cord                 1 piece

    7. Fuse                 3 pieces

    8. Product instruction manual           1 copy
